Short Description:

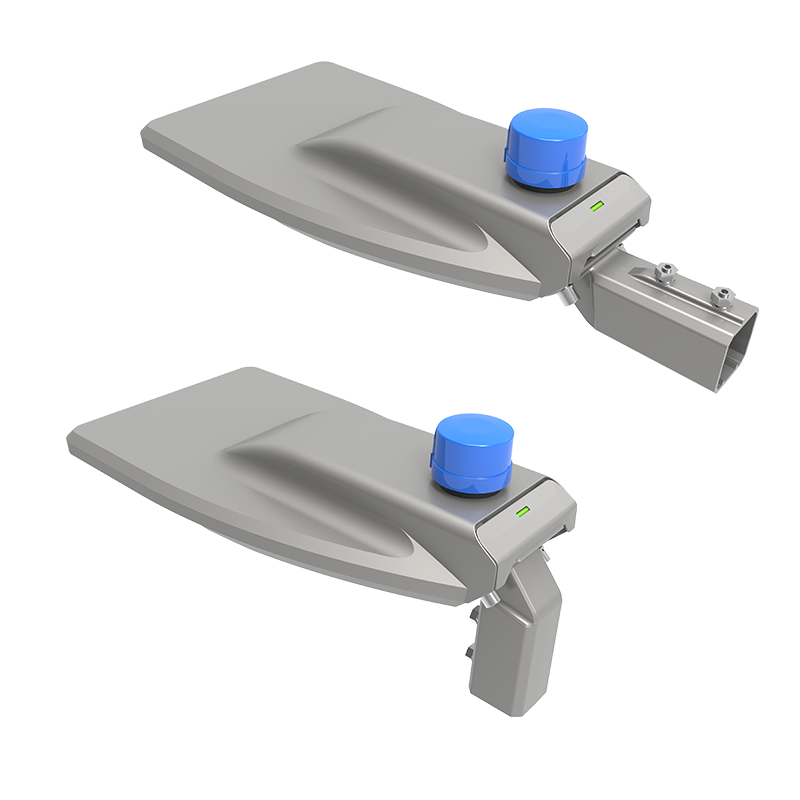

The R.322X series is another perfectly designed industrial product by the engineering researchers of Green Lighting. The overall shape of the lamp is simple and elegant, with no screws on the surface and smooth transitions. It has a self-cleaning function. It is a lighting product that allows the entire lamp body to be replaced without disassembling the connecting cable wires, making on-site maintenance convenient and quick, and minimizing the impact on the smooth flow of traffic on the road caused by the installation and maintenance of the product. It is mainly applicable to the lighting needs of motorways, urban roads, pedestrian roads and other roads.
Tags：adjustable, LED street lights, outdoor, roadway, street lighting,
Product Detail
The materials of the lamp body and the connecting tail seat of the lamp post are made of high-performance aluminum alloy by die-casting. The light-emitting surface material is tempered ultra-white glass, and the exposed screws are made of 304 stainless steel materials.
The LEDs adopt high-performance international well-known brands, with a lifespan of up to 100000 hours at L70.
The sealing material is made by injection molding of temperature-resistant and weather-resistant silicone rubber, having good sealing performance and service life.
A reflective film is also designed in the optical cavity, which can improve the optical efficiency of the whole lamp.
The lamp body can be divided into independent optical cavities and electrical cavities, and the installation and maintenance do not interfere with each other.

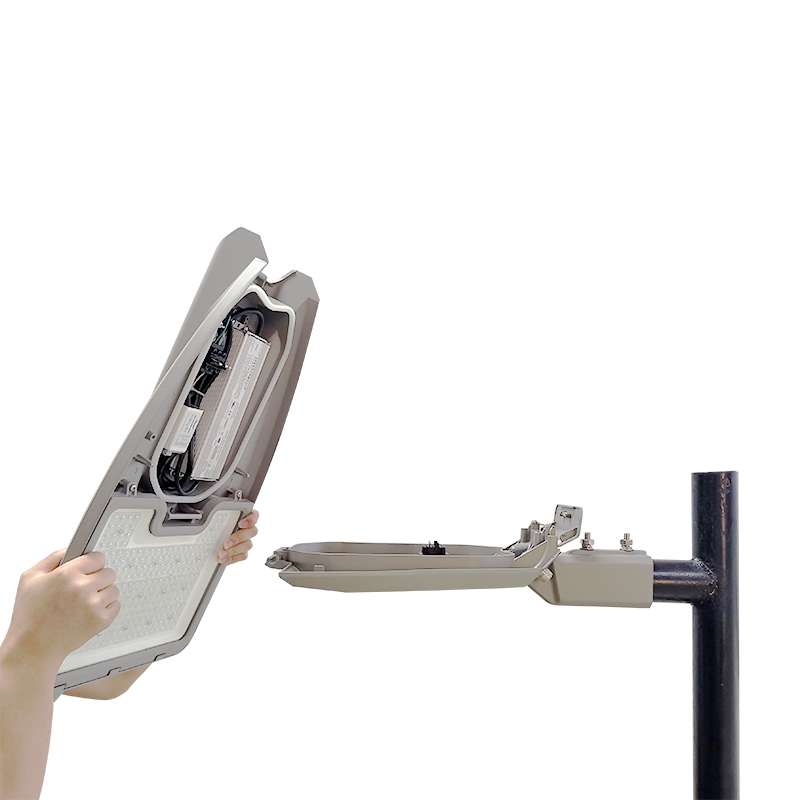

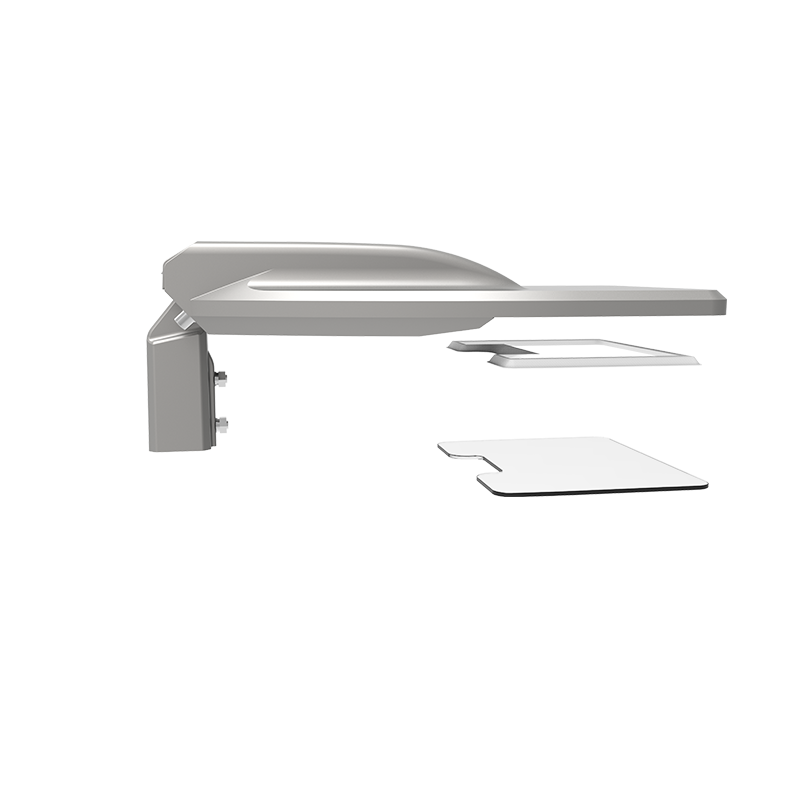

It has a top-opening cover structure design. The electrical cavity can be opened by hand without any tools, which is simple and convenient to operate. There is a power-off connector when the cover is opened.
The connecting tail seat of the lamp post enables the lamp to be installed horizontally or vertically.
The power range of this series of products is 30W – 300W, and it consists of lamp bodies in three sizes.
Optional color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K
The maximum system luminous efficiency can reach 180lm/w.
Optional accessories:
Anti-falling steel cable
Surge protector (10KV/15KV/20KV/40KV)
NEMA & ZHAGA standard interfaces
Parameter table
| R.3221 | ||

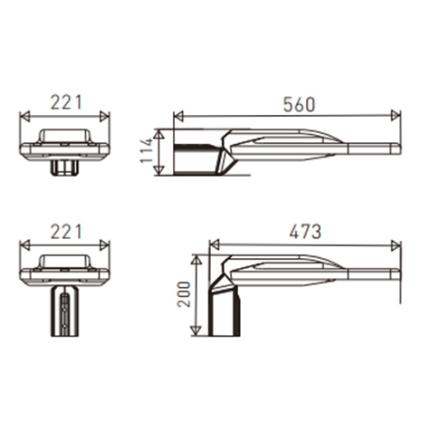

 | Size | L560*W221*H114mm(horizontal) L473*W221*H200mm(vertical) |
| Power | 50~100W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 4.0KG | |

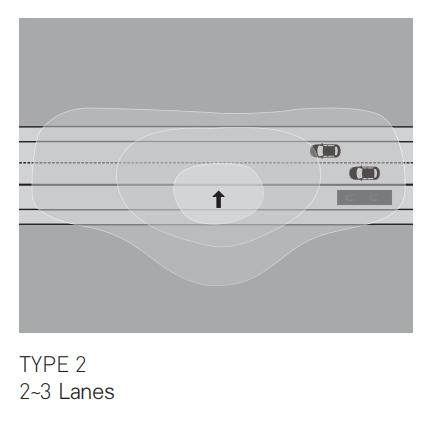

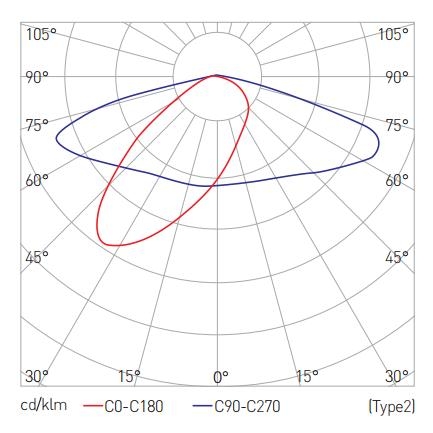

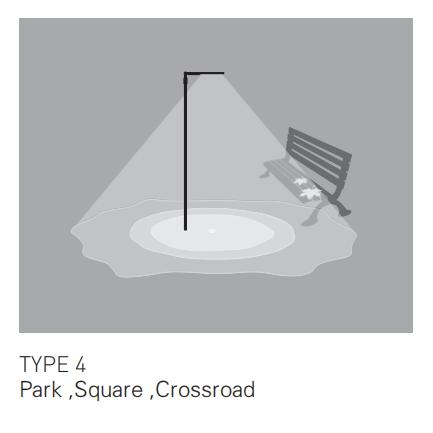

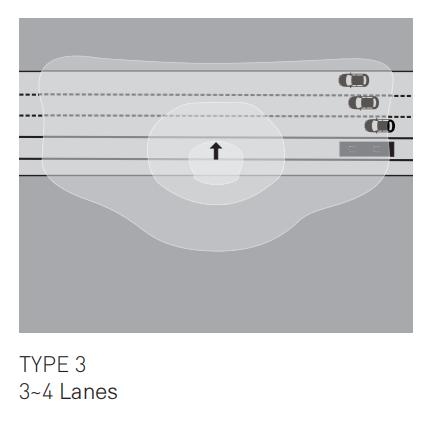

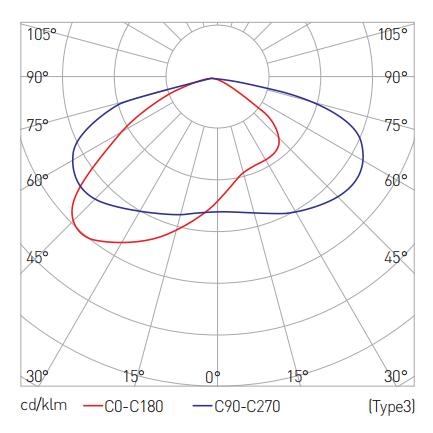

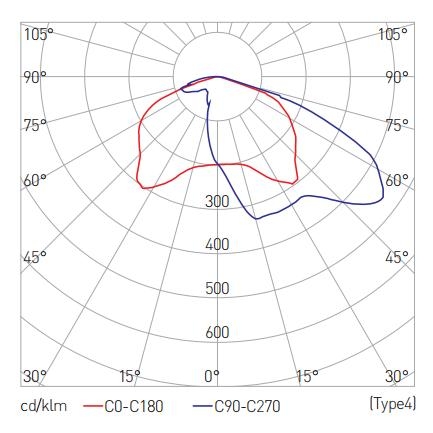

| Optics | Type 2、Type3、Type4 | |
| R.3222 | ||

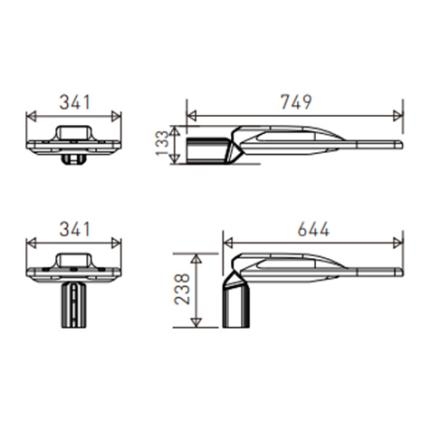

 | Size | L749*W341*H133mm(horizontal) L644*W341*H238mm(vertical) |
| Power | 50~200W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 8.0KG | |
| Optics | Type 2、Type3、Type4 | |
| R.3223 | ||

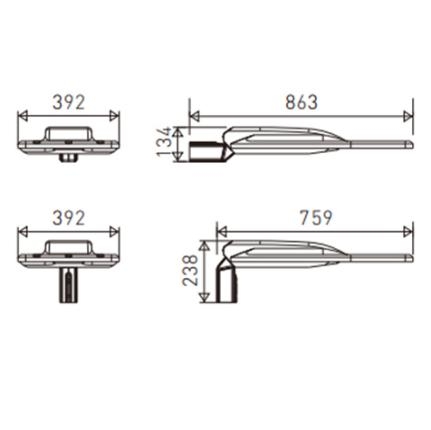

 | Size | L863*W392*H134mm(horizontal) L759*W392*H238mm(vertical) |
| Power | 200~300W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 10.0KG | |
| Optics | Type 2、Type3、Type4 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2700K/3000K/4000K/5000K |

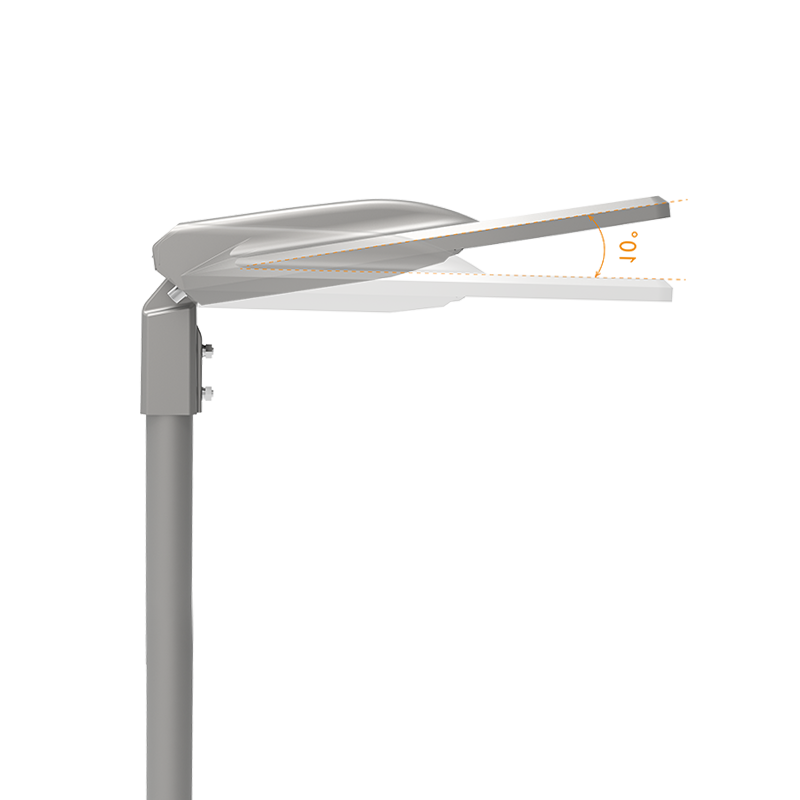

| Adjust the angle | 0~10° |

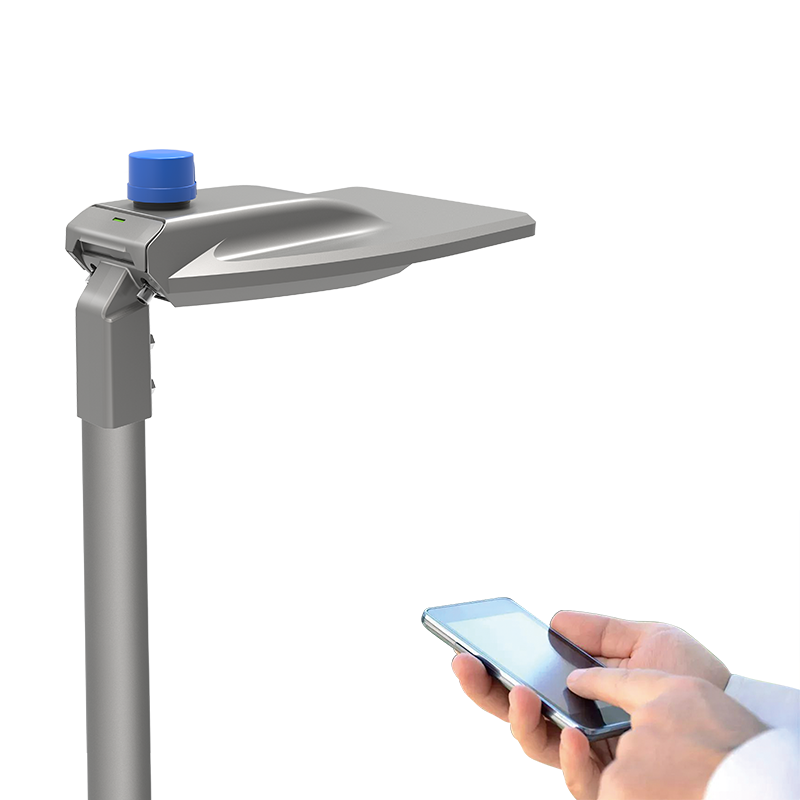

| Components Choosable | · Vertical install transition sleeve · Power off protector · Optical controller · Intelligent control interface and intelligent controlaccessories · Falling prevention safety rope · Single lamp single control · Surge Protective Device |
