Short Description:
R.324X LED road light series comes in 4 sizes, watts from 20W~320W. Adopt high-performance LED, CCT 2200K~6500K, efficiency max to 180lm/w. This series has multiple lighting options for choose, which can be applied in motor vehicle lanes and pedestrian roads.
Tags：dimming, lighting, outdoor, road, Road light, smart, street,
Product Detail
Light body adopts a high-pressure aluminum alloy integrated die-casting, which has good anti vibration, waterproof, dustproof, heat dissipation, and pollution resistance performance.

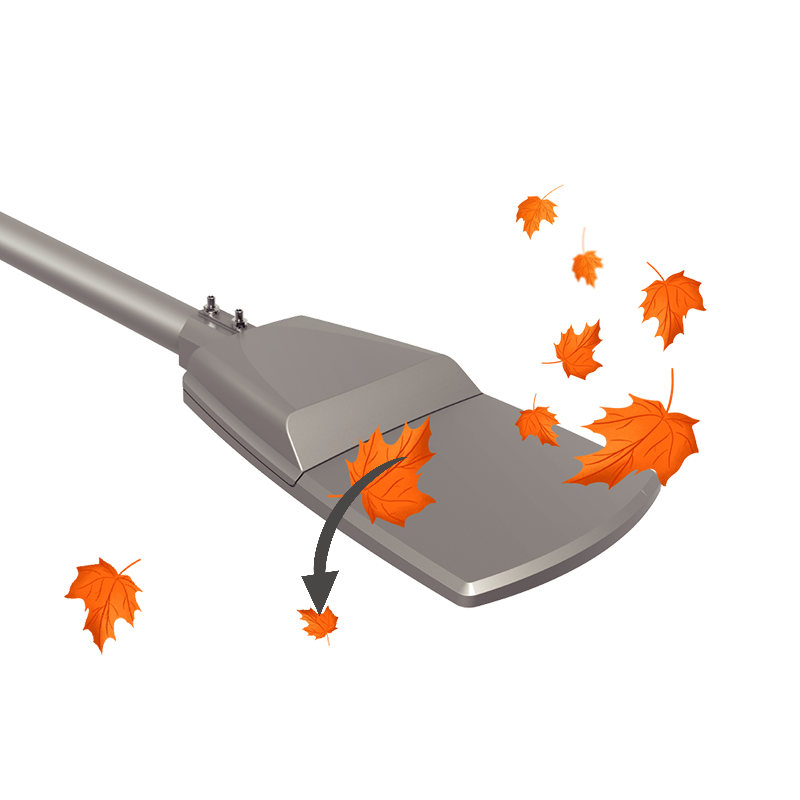

The surface is smooth, without protruding heat dissipation ribs or columns or concave structures, which can reduce wind resistance and greatly improve safety. It can also avoid the accumulation of dirt, which is more conducive to the self-cleaning effect of the product and always maintain smooth and fast heat dissipation.
Tempered glass with a glossy surface effectively protects optical components from external hazards such as ultraviolet radiation, car exhaust, dust, etc., reducing the impact of the environment on light output, thereby ensuring the maintenance rate of light output and delaying light decay

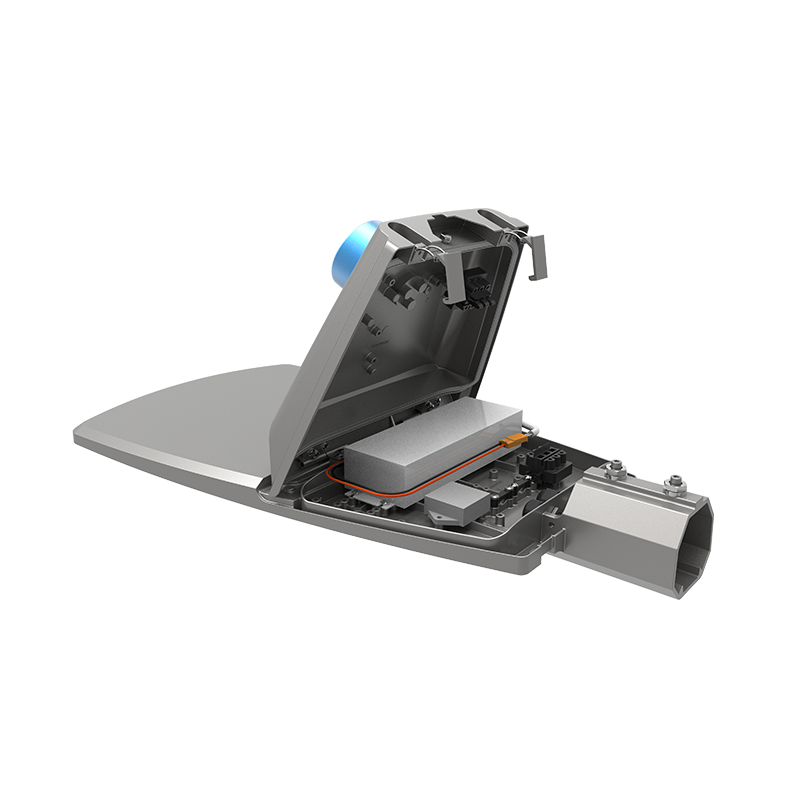

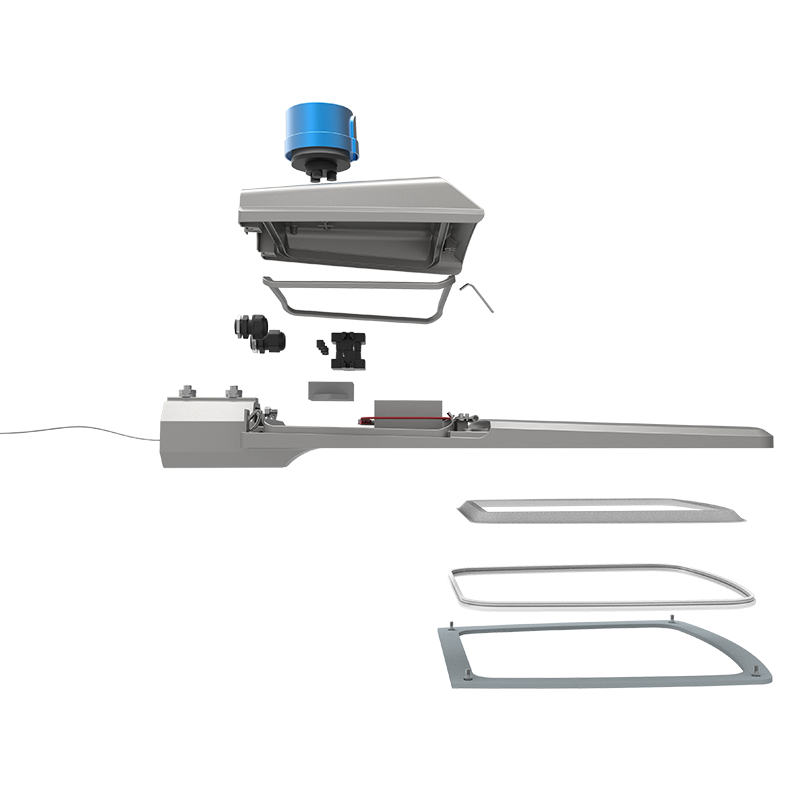

The dual cavity structure design with independent separation of the electrical cavity and the light source cavity avoids the occurrence of premature failure of the light source and power supply caused by the accumulation of heat and high temperature.

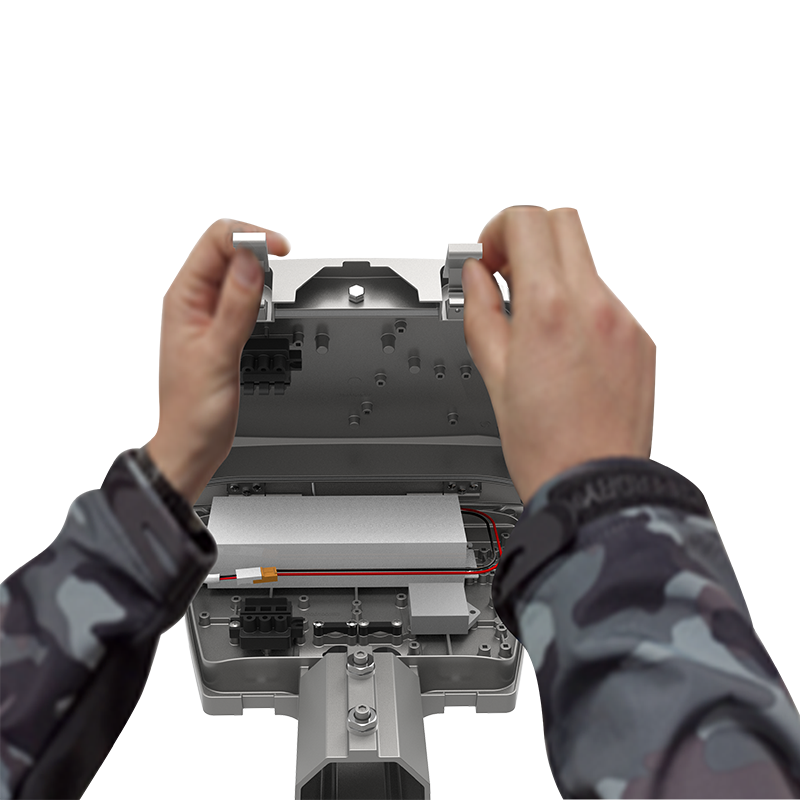

The design of the cover opening structure without tools and hands is simple and convenient to operate.
Optional：Safety wire 、（10KV/15KV/20KV/40KV) SPD、 NEMA & ZHAGA base、on/off and dimming power supply、Connector knife contact block
Parameter table
| R.3240 | ||

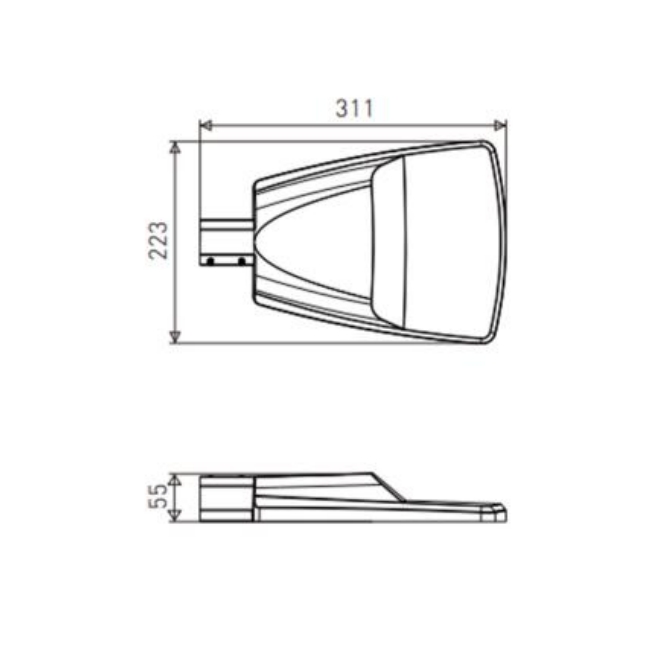

 | Size | L311*W223*H55mm |
| Power | 20~30W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 1.8KG | |

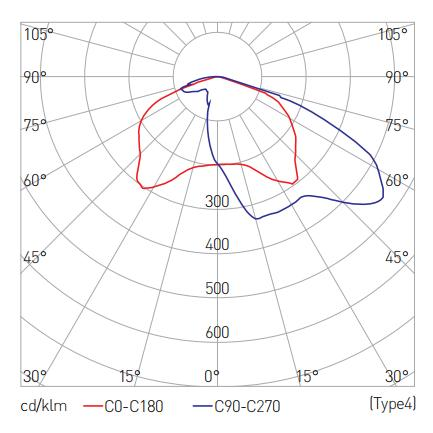

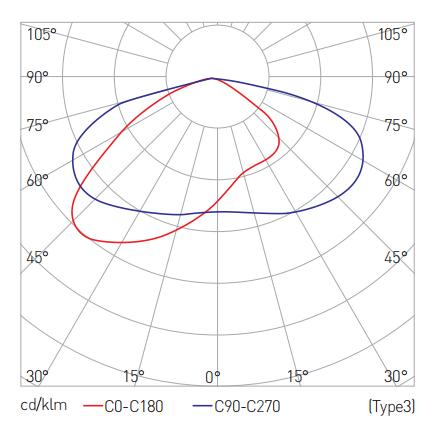

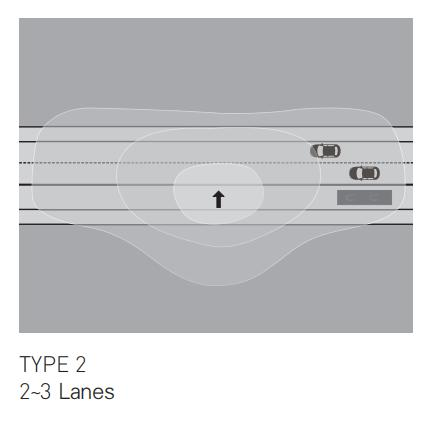

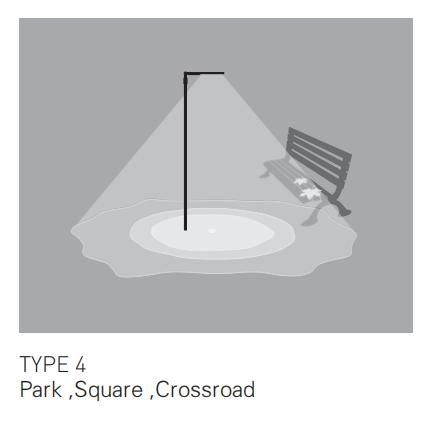

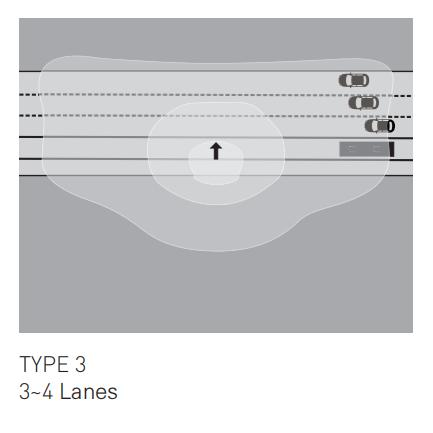

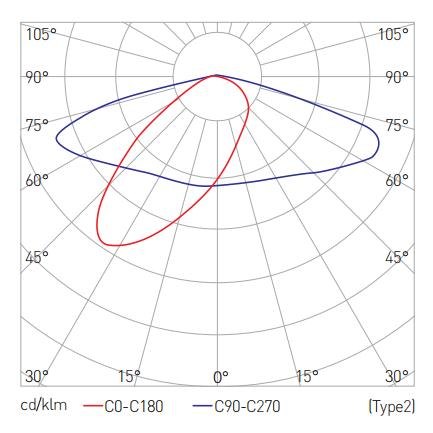

| Optics | Type 2、Type3、Type4 | |
| R.3241 | ||

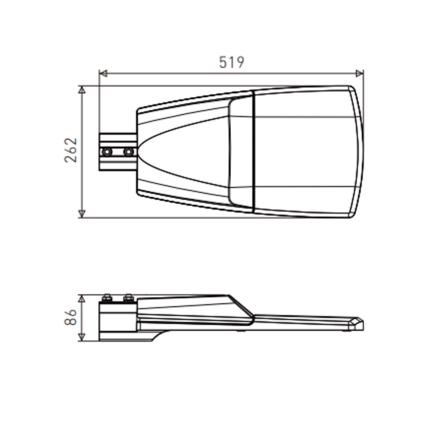

 | Size | L519*W262*H86mm |
| Power | 50~100W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 4.0KG | |
| Optics | Type 2、Type3、Type4 | |
| R.3242 | ||

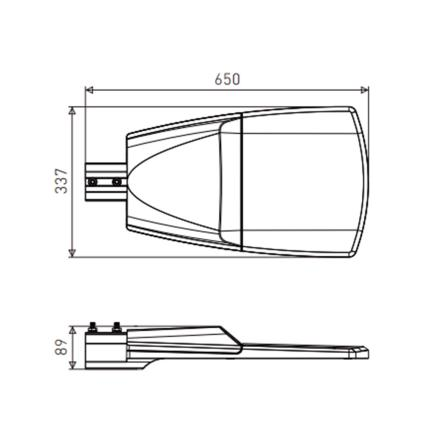

 | Size | L650*W337*H89mm |
| Power | 125~200W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 6.3KG | |
| Optics | Type 2、Type3、Type4 | |
| R.3243 | ||

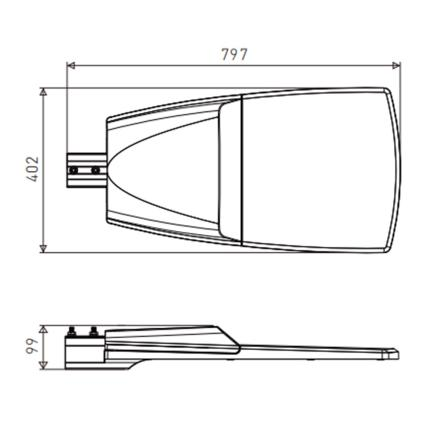

 | Size | L797*W402*H99mm |
| Power | 225~325W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 9.4KG | |
| Optics | Type 2、Type3、Type4 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class Ⅰ |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+40℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2200K/2700K/3000K/4000K/5000K/6500K |
| Wind resistance rating | 188Km/h |
| Components Choosable | · Vertical install transition sleeve · Power off protector · Optical controller · Intelligent control interface and intelligent control accessories · Falling prevention safety rope · Single lamp single control · Surge Protective Device |
