The lamp housing is made of high-pressure die-cast aluminum, featuring a standard 500-hour salt spray coating and IP66 waterproof and dustproof performance, ensuring excellent reliability.

The simple shape and structural design, along with the convenient installation method, provide my clients with the simplest installation and maintenance operations.

There is no risk of biological blue light hazard, in compliance with the requirements of the EN62471:2008 standard.

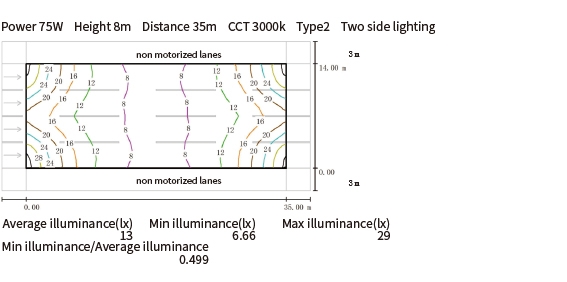

Installation height is between 3.5 meters and 8 meters, suitable for road widths of 7 meters to 14 meters.

According to actual needs, a single lamp controller can also be configured to achieve intelligent control of the lighting scheme.

Surface color can be customized according to customer requirements.

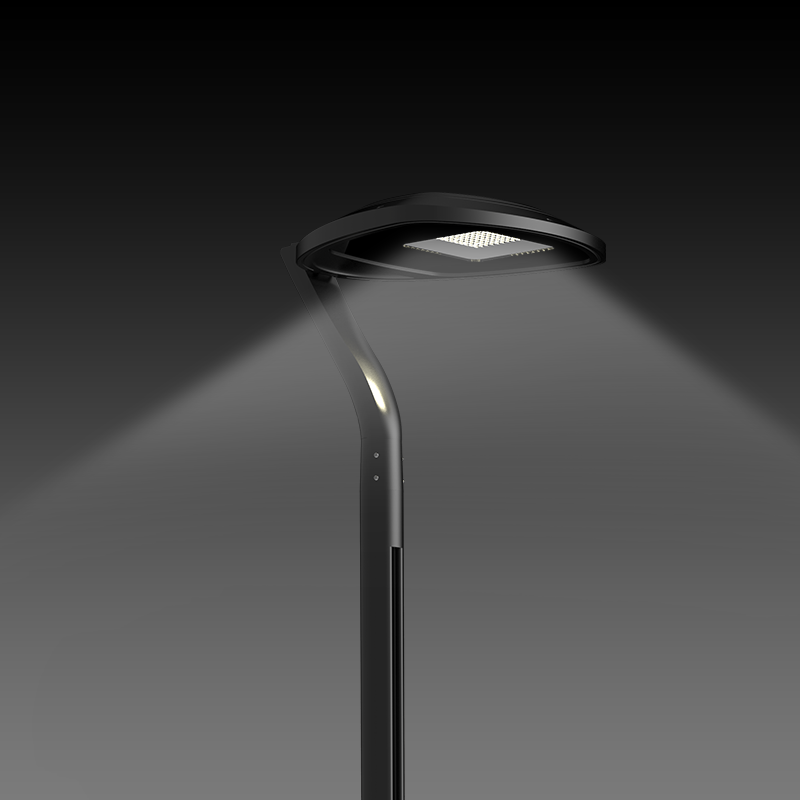

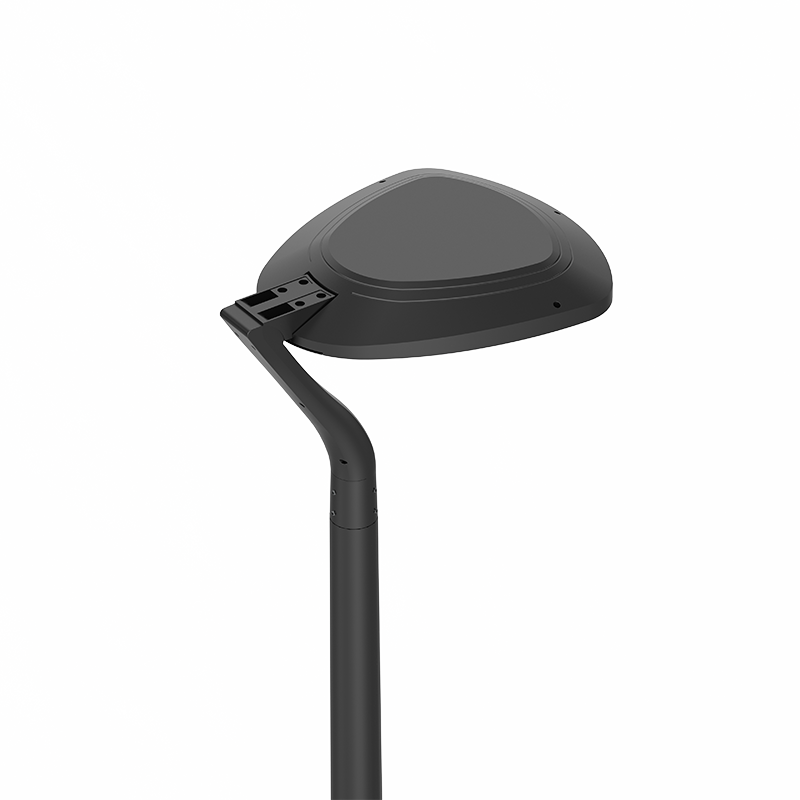

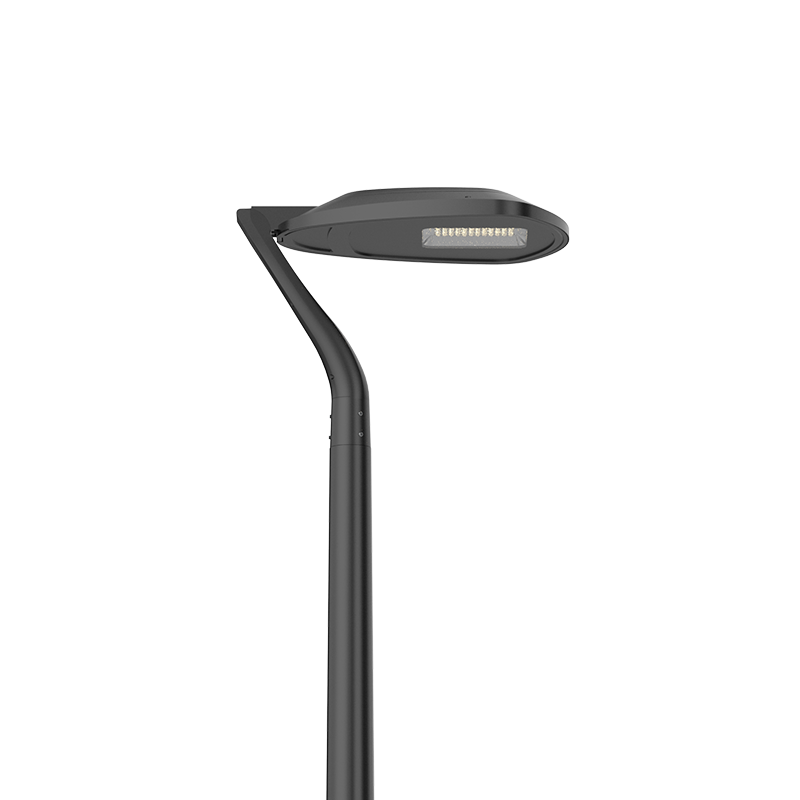

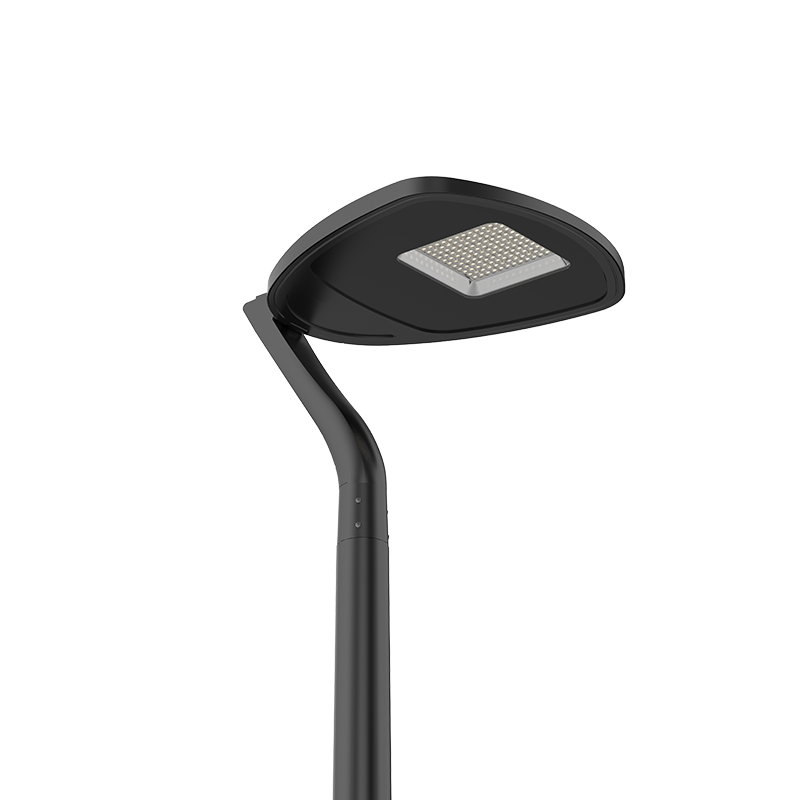

R.4015

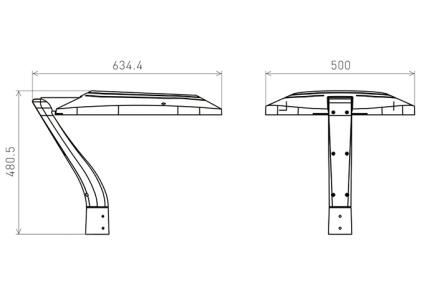

	Size	L625*W500*H480mm
	Weight	7.68kg
	Power	30~75W
	Efficiency	80lm/w~140lm/w

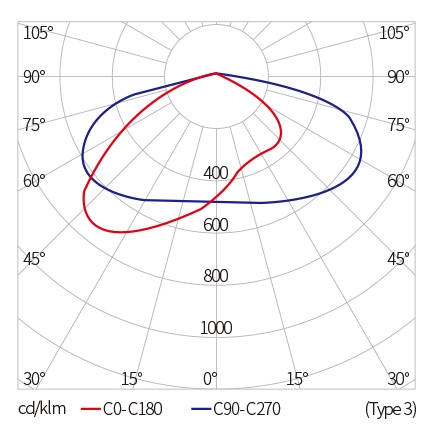

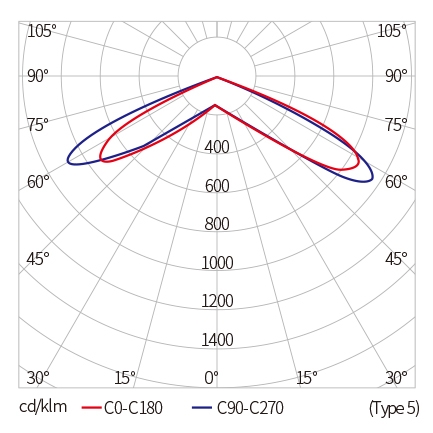

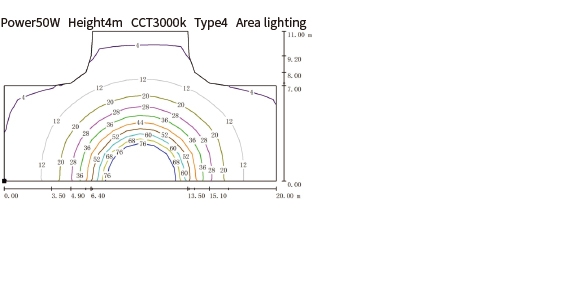

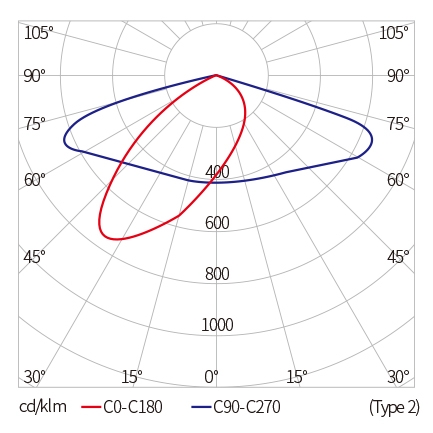

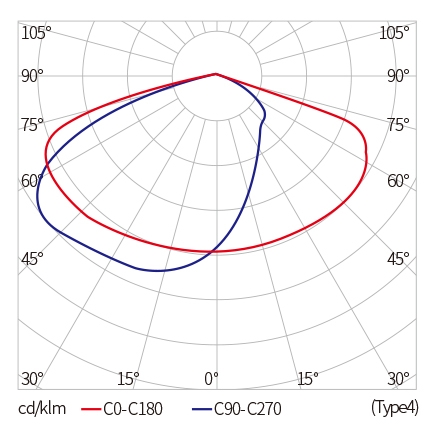

	Optics	Type2/Type3/Type4/Type5

Attributes	Description
Rated power	90~305Vac 50/60 Hz
Control solution	Monochrome always light or 0-10V dimming
Anti-collision level	IK09
IP	IP65
safety class	Class I、Class II
Corrosion protection level	WF2
Ambient temperature	-45℃~+50℃
Ambient humidity	10%~95%RH
Components Choosable	·Dimming power supply ·Surge protector

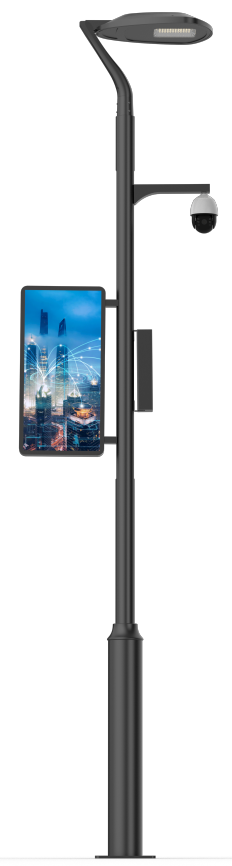

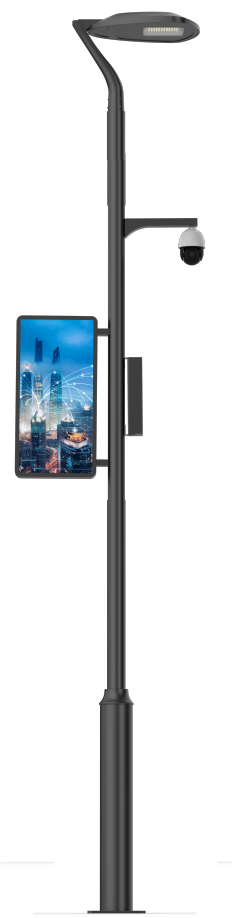

A Variety Of Rod Combinations
Pole.3605	Pole.3606	Pole.3401	Pole.3402
Material : Aluminum alloy	Material : Aluminum alloy	Material : Q235	Material : Q235
Thickness(mm) : 3	Thickness(mm) : 3	Thickness(mm) : 2.5	Thickness(mm) : 2.5
Height(m) : 3.5/4/4.5/5	Height(m) : 3.5/4/4.5/5	Height(m) : 3.5/4/4.5/5	Height(m) : 6/8
Top size(mm) : Φ85	Top size(mm) : Φ85	Top size(mm) : Φ89	Top size(mm) : Φ114
Bottom size(mm) : Φ127	Bottom size(mm) : Φ127	Bottom size(mm) : Φ140	Bottom size(mm) : Φ165
Flange size(mm) : 240*240	Flange size(mm) : 240*240	Flange size(mm) : 300*300	Flange size(mm) : 300*300
