Short Description:

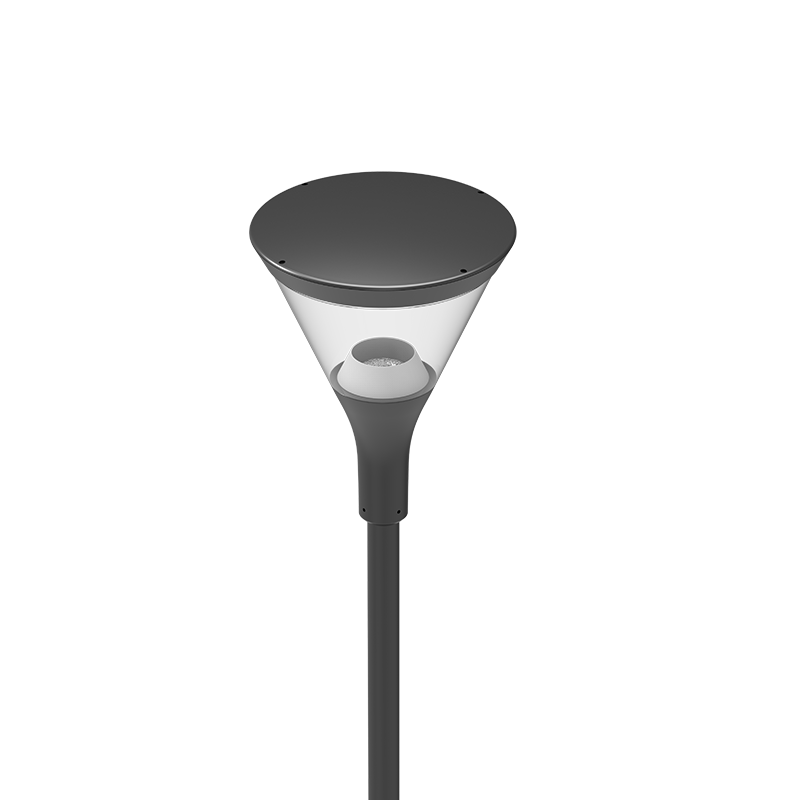

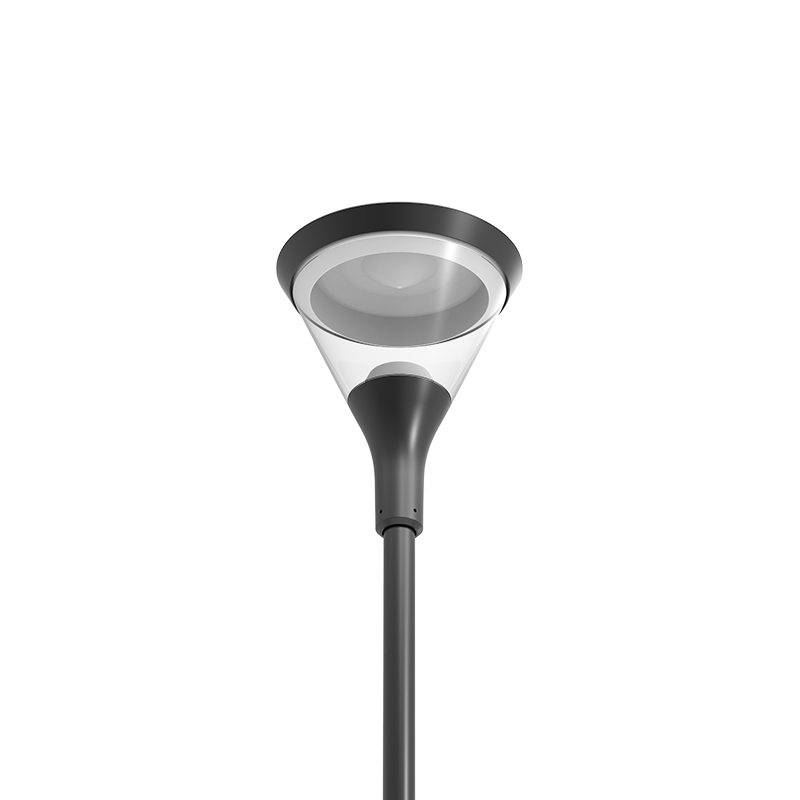

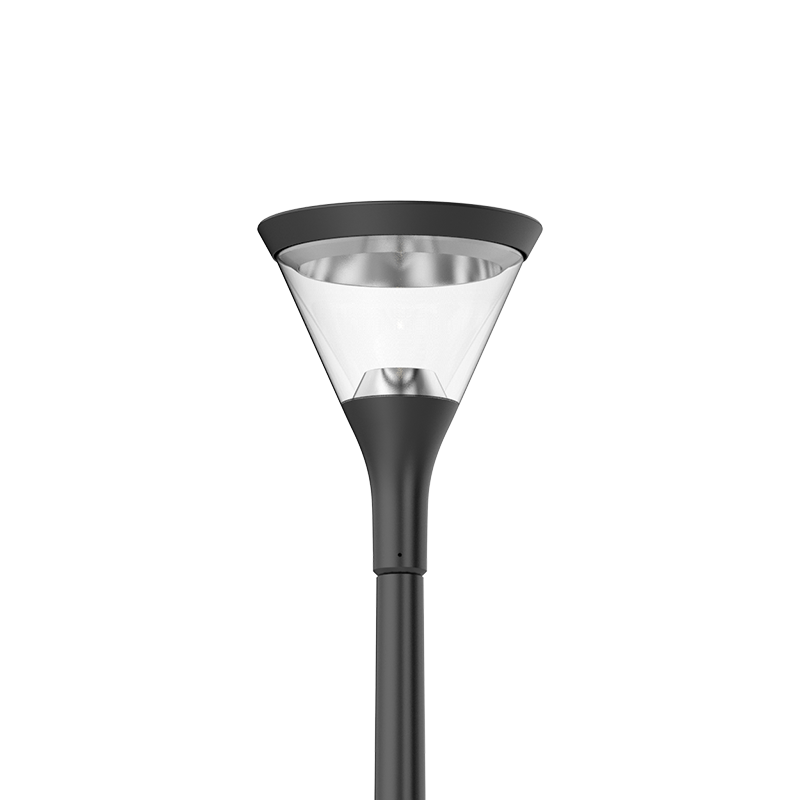

R.4012 is a classic LED garden lighting fixture that incorporates modern design elements, seamlessly blending with various styles of lamp posts and harmoniously integrating with the surrounding environment and architecture. It is a lighting product with strong decorative and adaptability features, suitable for a variety of settings including plazas, parks, seaside promenades, and commercial districts.
Tags：garden lights, landscape illumination, squares, streets, urban lighting,
Product Detail

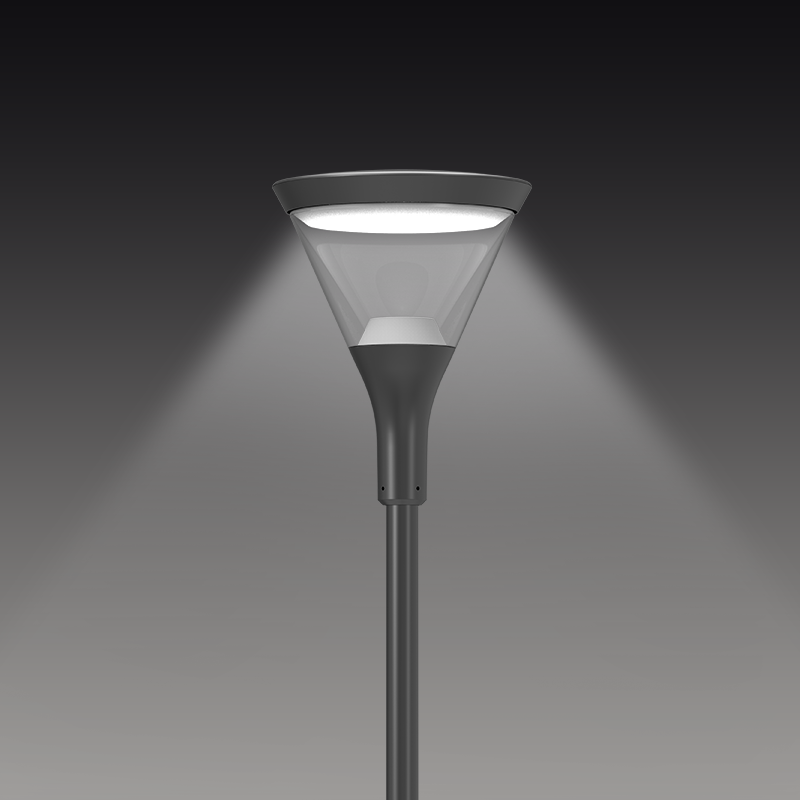

This luminaire employs a secondary reflection indirect lighting method, effectively preventing glare and ensuring perfect lighting uniformity and excellent visual comfort.
The upper cover and base of the lamp body are made of die-cast aluminum alloy, the light diffuser is made of optical-grade PC material, the secondary reflector is made of high reflectivity PE material, and the light source is from internationally renowned high-quality LEDs.

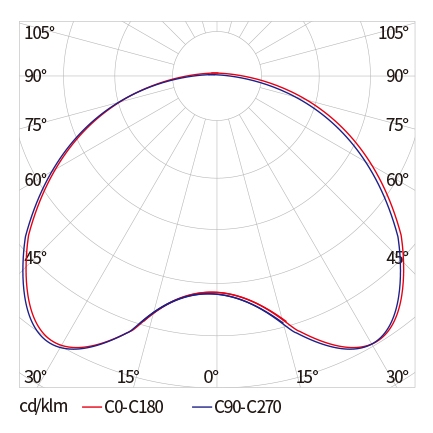

The light distribution is symmetrical Type5, with a large light-emitting atmosphere, soft light, and uniform illumination.
The lamp post comes in single, double, and triple head options, providing freedom and convenience for lighting designers and architects to choose from.
Installation height is recommended to be between 3.5 meters to 5 meters, determined according to environmental needs.
Surface color can be customized according to customer requirements.
Parameter table
| R.4012 | ||

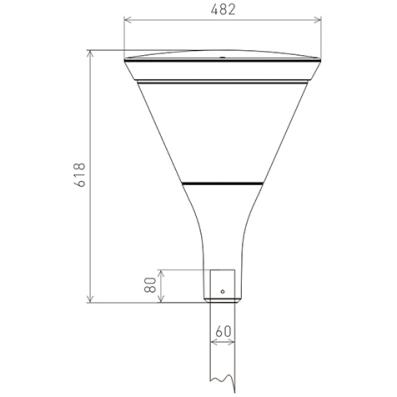

 | Size | Φ482*618mm |
| Weight | 8.4kg | |
| Power | 30~50W | |
| Efficiency | 70lm/w~90lm/w | |
| Optics | 135° | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| Components Choosable | ·Dimming power supply ·Surge protector |

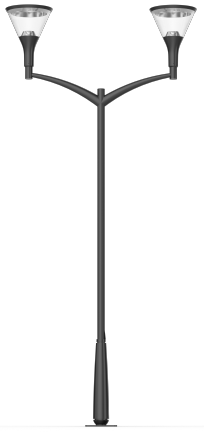

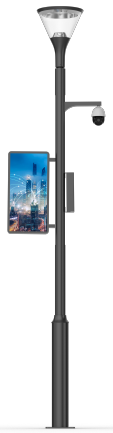

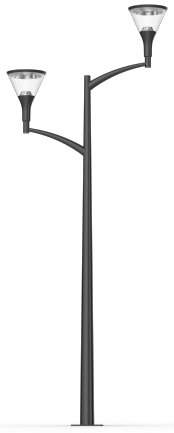

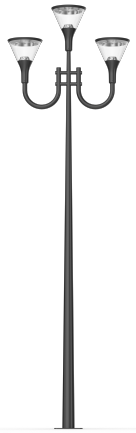

| A Variety Of Rod Combinations | ||||||
| Pole.3605 | Pole.3606 | Pole.3401 | Pole.3611 | Pole.3612 | Pole.3613 | Pole.3614 |
 |  |  |  |  |  |  |
| Material : Aluminum alloy | Material : Aluminum alloy | Material : Q235 | Material : Aluminum alloy | Material : Aluminum alloy | Material : Aluminum alloy | Material : Aluminum alloy |
| Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 2.5 | Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 3 |
| Height(m) : 3.5/4/4.5/5 | Height(m) : 3.5/4/4.5/5 | Height(m) : 3.5/4/4.5/5 | Height(m) : 3.5/4/4.5/5 | Height(m) : 4/4.5/5 | Height(m) : 4.5/5/6 | Height(m) : 3.5/4/4.5/5 |
| Top size(mm) : Φ85 | Top size(mm) : Φ85 | Top size(mm) : Φ89 | Top size(mm) : Φ85 | Top size(mm) : Φ85 | Top size(mm) : Φ85 | Size(mm) : Φ110 |
| Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ140 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | |
| Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 300*300 | Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 240*240 |
