Short Description:

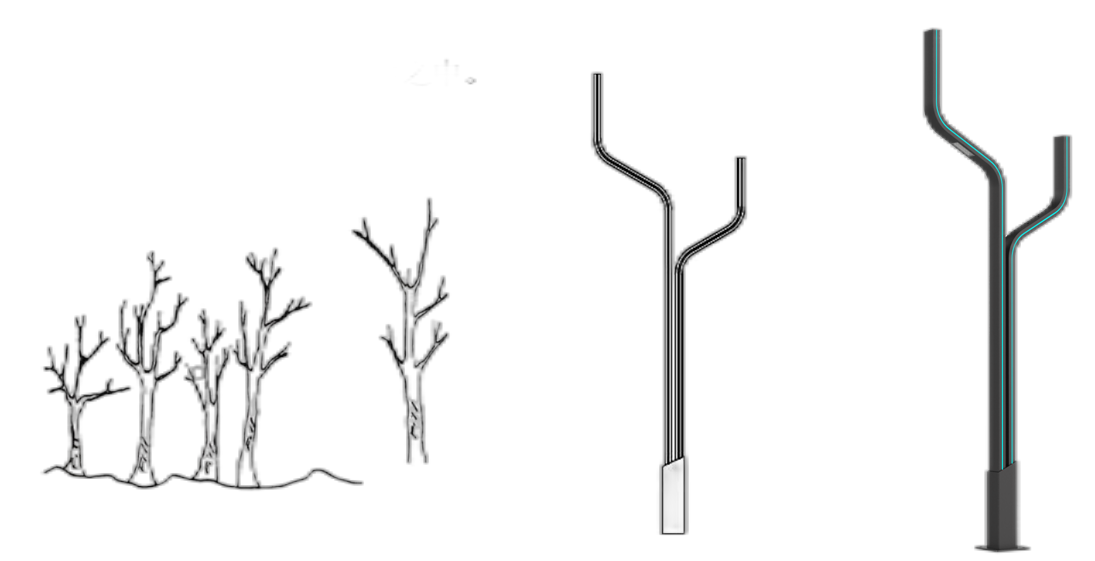

The R.4004 product is also known as the Wisdom Tree, which is inspired by the form of a tree, enabling the lighting to blend into nature in the form of a tree. Moreover, in the product design, a single lamp controller can be configured according to customer requirements to conduct centralized management and control of optics, making the lighting more intelligent.
Tags：garden lights, landscape lights, LED, outdoor lighting, Wisdom Tree,
Product Detail

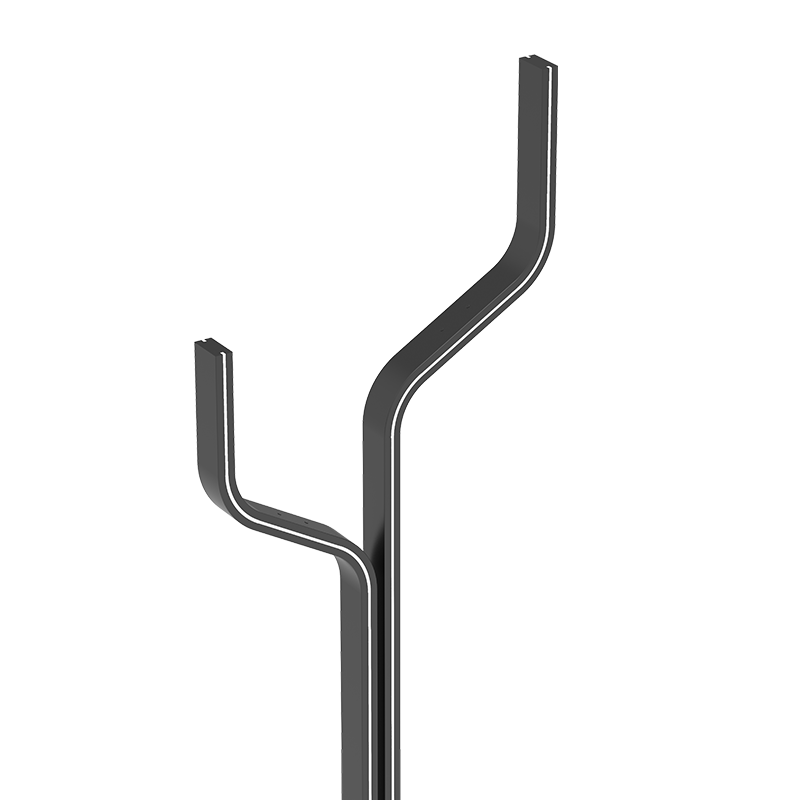

The pole body of this product consists of a rectangular double tube with dimensions of 150 * 70 mm. It is made of aluminum alloy pipes, and the surface is treated with electrostatic resin powder spraying.

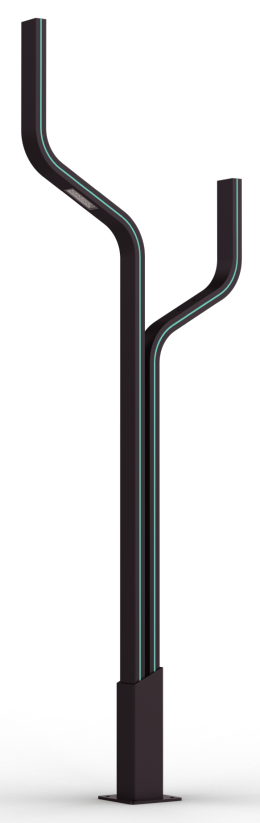

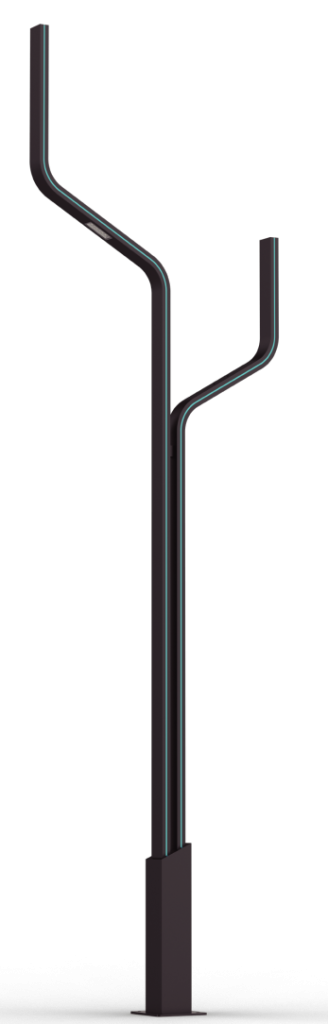

This product is designed with a double-headed and two-sided light-emitting structure. There are two height configurations, namely 4.5 meters and 7.5 meters, which can be selected according to different roads.

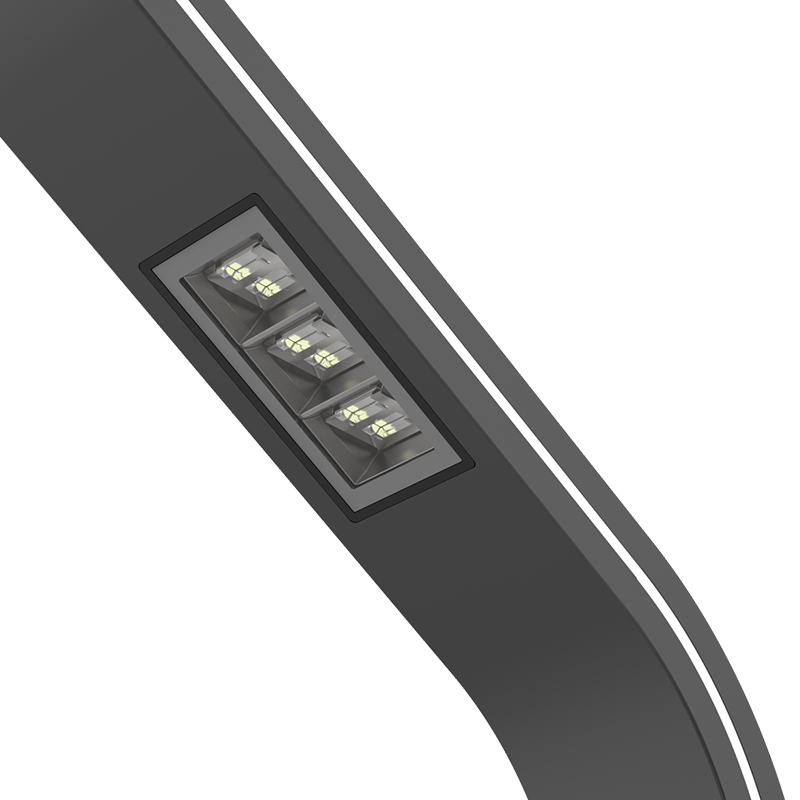

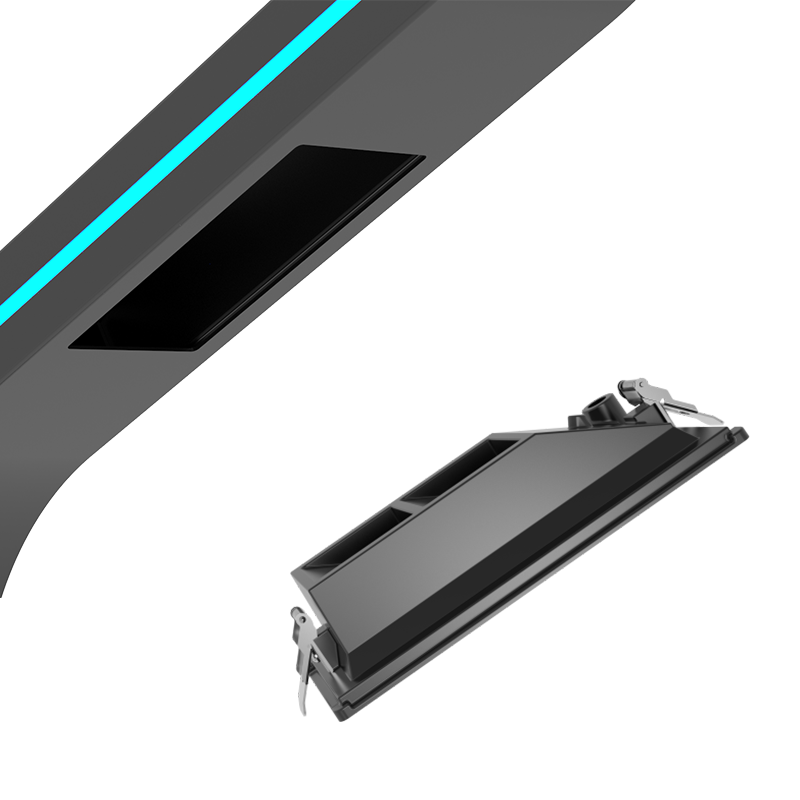

The light-emitting body is an independent embedded LED light-emitting module, which integrates well with the pole body and can be conveniently disassembled for replacement and maintenance. There are two configurations for the power of the LED light-emitting module, namely 15W and 30W.
The side of the pole body is equipped with decorative light strips, and the light-emitting colors are lake blue or white.
This garden light can be equipped with a single lamp controller to realize the definition of lighting modes, the statistics of energy consumption, and the alarm for faults.
The pole body can be installed with devices such as cameras and monitors to achieve the centralized processing of various functional devices.
This product is mainly applied to the lighting of roads in tourist scenic areas, residential communities, industrial areas, etc.
Parameter table
| R.4004-A | R.4004-B |
 |  |
| Material : Aluminum alloy | Material : Aluminum alloy |
| Thickness(mm) : 3 | Thickness(mm) : 3 |
| Height(m) : 4.5 | Height(m) : 7.5 |
| Size(mm) : 150*70 | Size(mm) : 150*70 |
| Flange size(mm) : 380*380 | Flange size(mm) : 380*380 |
| Attributes | Description |

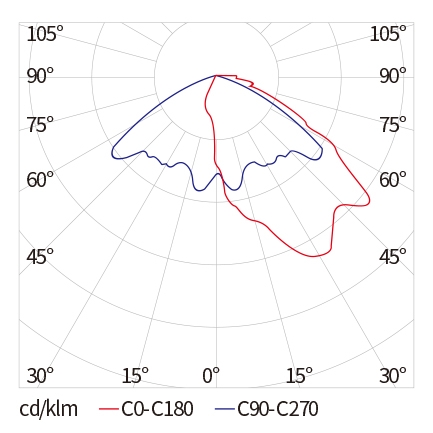

| Optics | 130°*80° |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP65 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| Components Choosable | ·Dimming driver ·Optical controller ·Nema,Zhaga and other standard interface sockets ·Single lamp single control ·Surge Protective Device |
