Short Description:

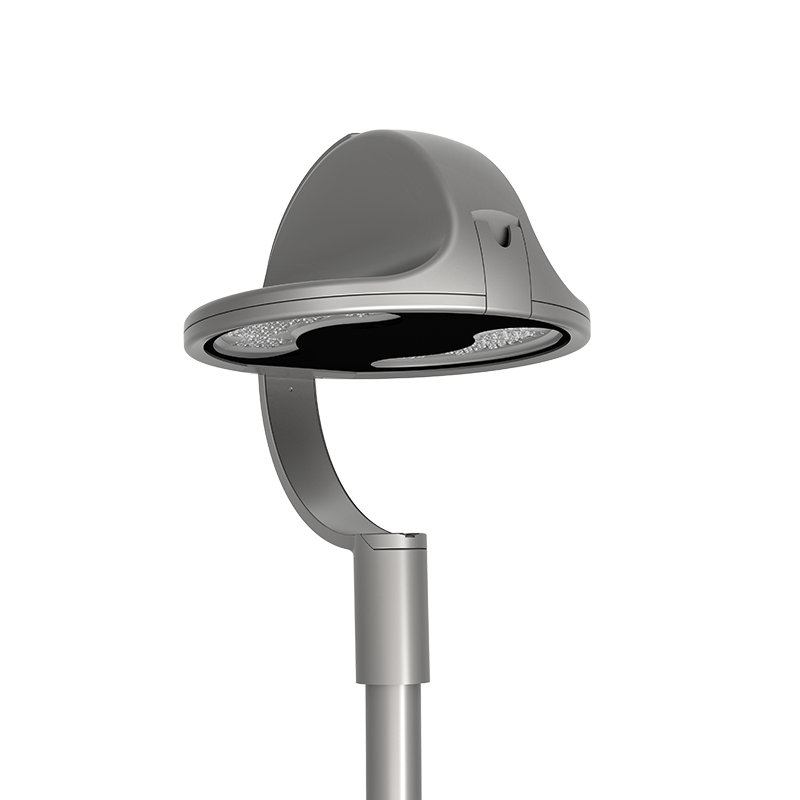

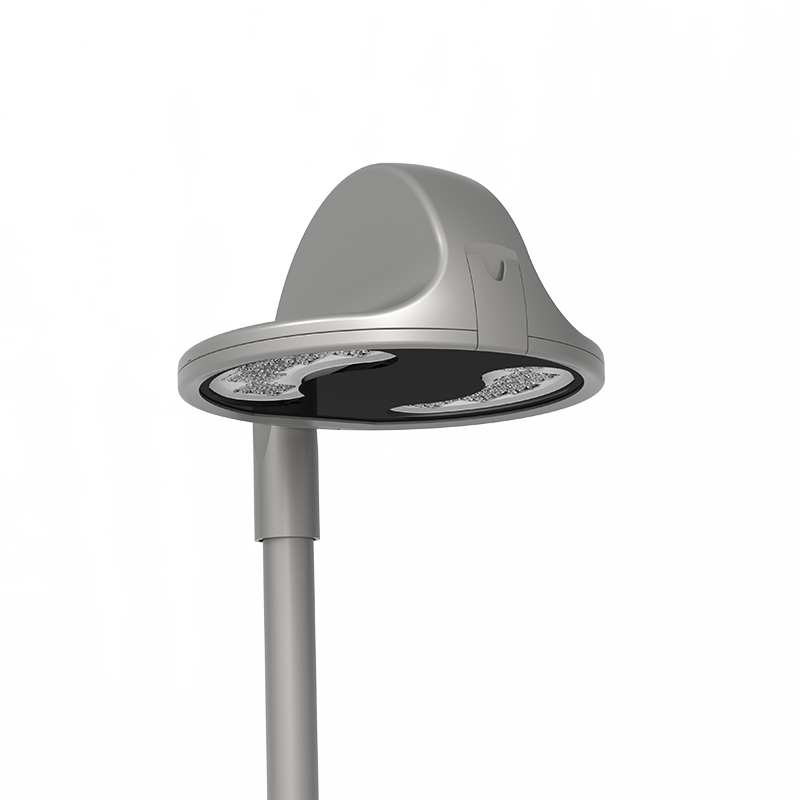

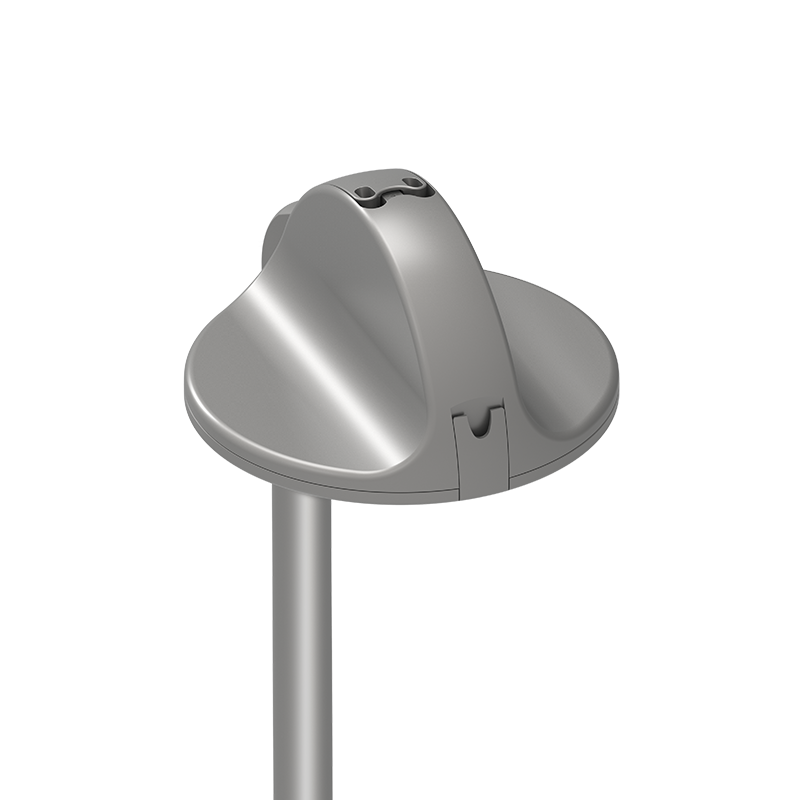

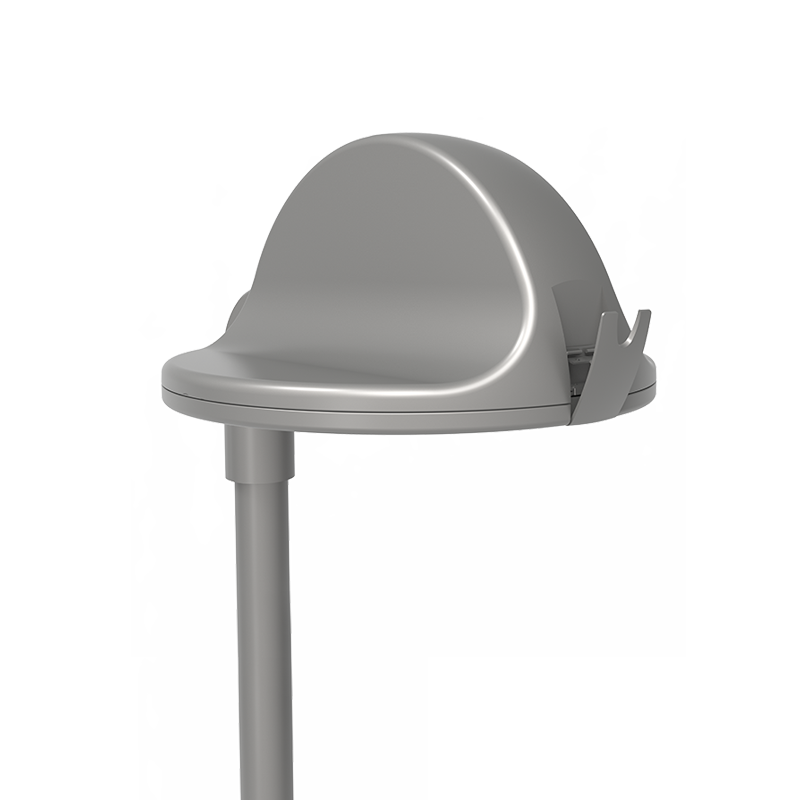

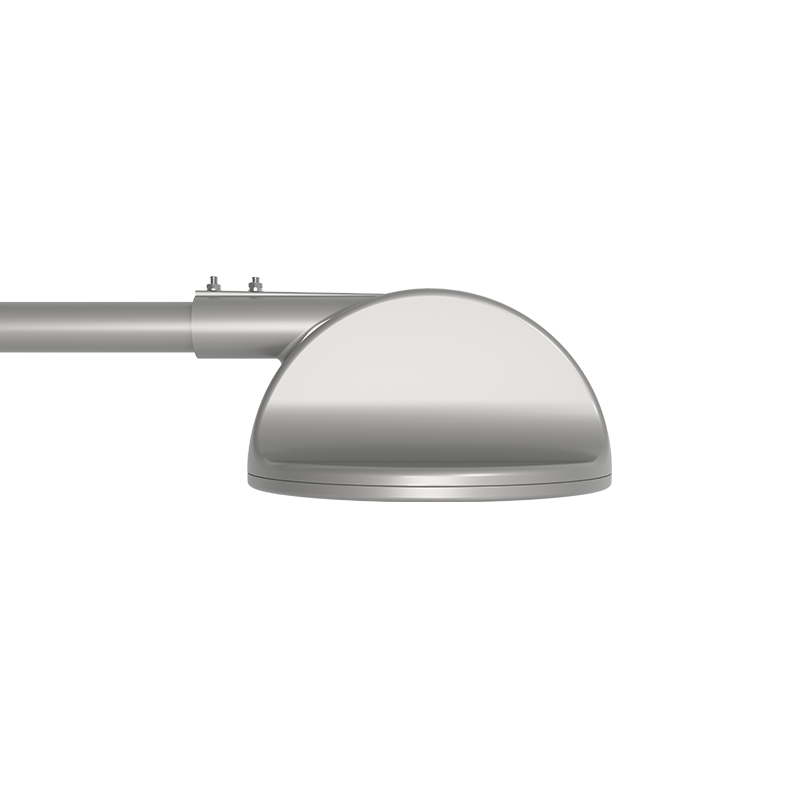

R.3214 Garden Light is an LED lighting product derived from the Western hat shape, which can be used for villas, residential areas, urban parks, tourist attractions, industrial parks, commercial pedestrian streets, as well as for lighting urban motor vehicle lanes. Different distribution types can be selected according to different characteristics. The installation height is 3-6 meters.
Tags：Garden light, Landscape light, outdoor, park, square, tourist attractions,
Product Detail
Light body adopts a high-pressure aluminum alloy integrated die-casting structure design, and the bottom is made of ultra white tempered glass with a glossy surface, making the product simple and clean.

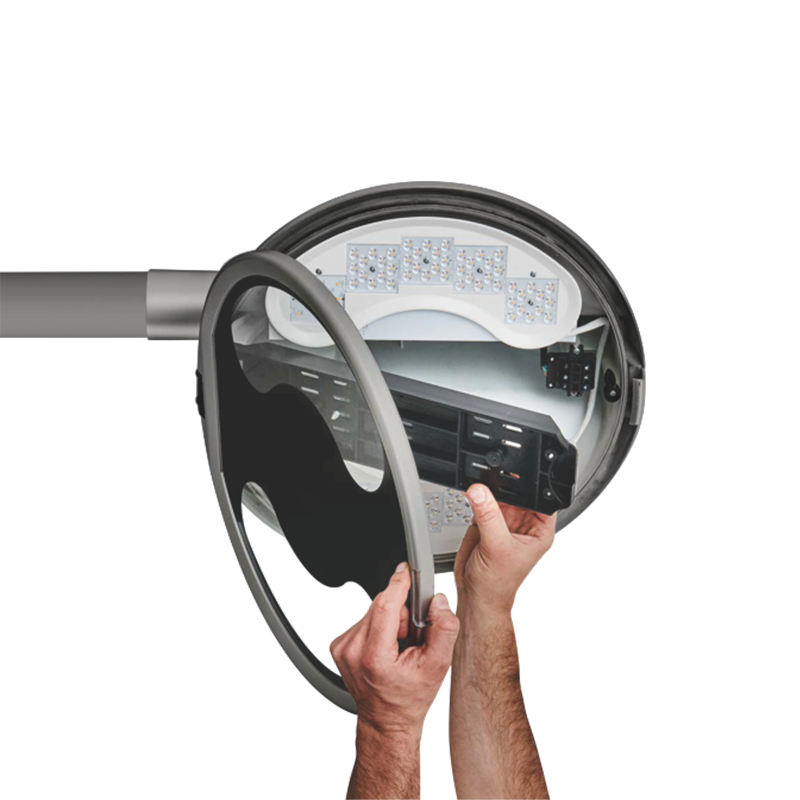

Can be opened with hands, making installation and maintenance very convenient.
The electrical board adopts a knob type fixing method, which is easy and convenient to operate.
The power supply cord connection adopts plug-in connector, which can be replaced on site.
This product comes with different installation method for customers to choose from, such as horizontal installation, vertical installation, pendant installation, wire suspension, and other accessories.
We also offer different CCT to meet different needs from customers.
It can also be configured with connector knife contact block, SPD, NEMA&ZHAGA base and dimming control or sensors according to requirements.
Parameter table
| R.3214 | ||

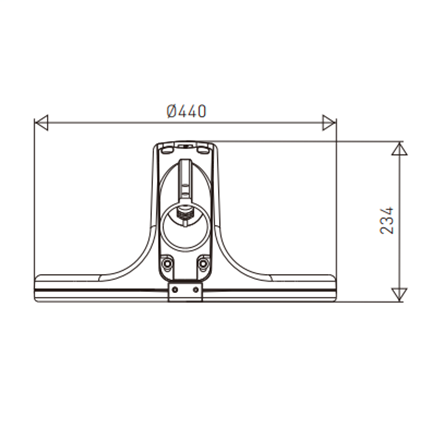

 | Size | Φ440*234mm |
| Power | 30~75W | |
| Efficiency | 70lm/w~130lm/w | |
| Weight | 8.5KG | |

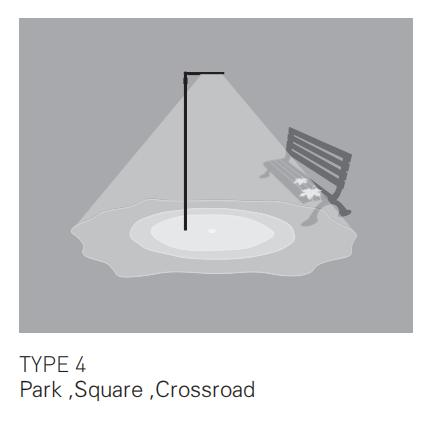

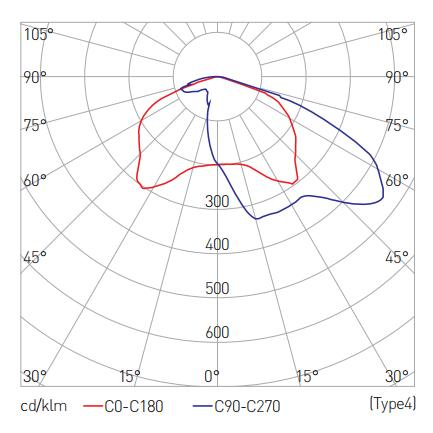

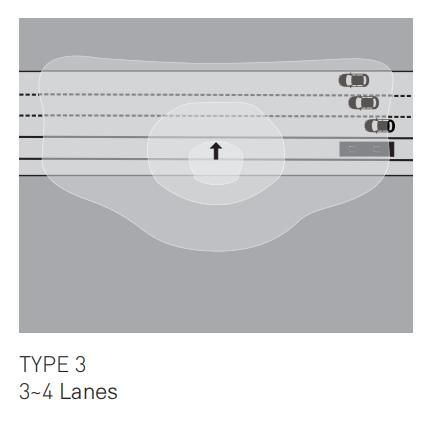

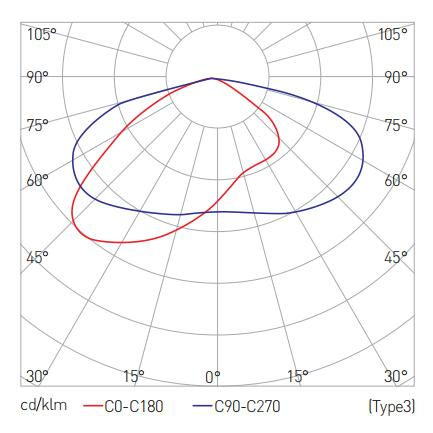

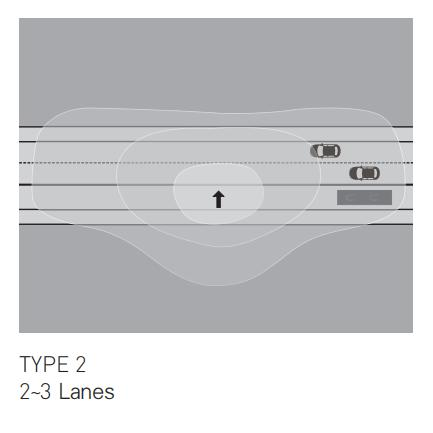

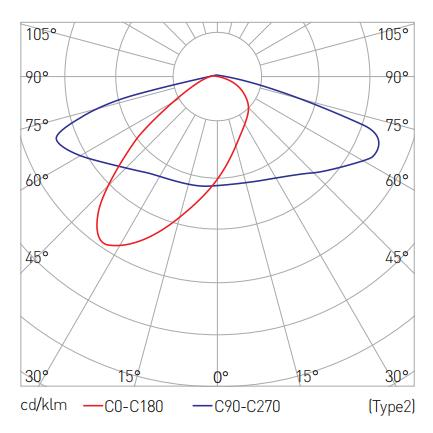

| Optics | Type 2、Type3、Type4 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 3000K/4000K/5000K |
| Components Choosable | · Power off protector · Falling prevention safety rope · Single light single control |

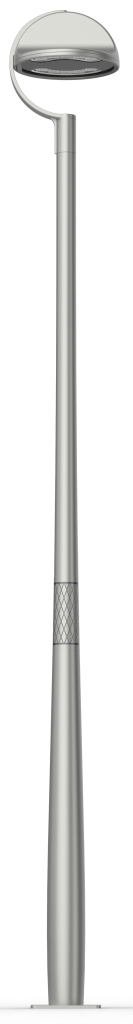

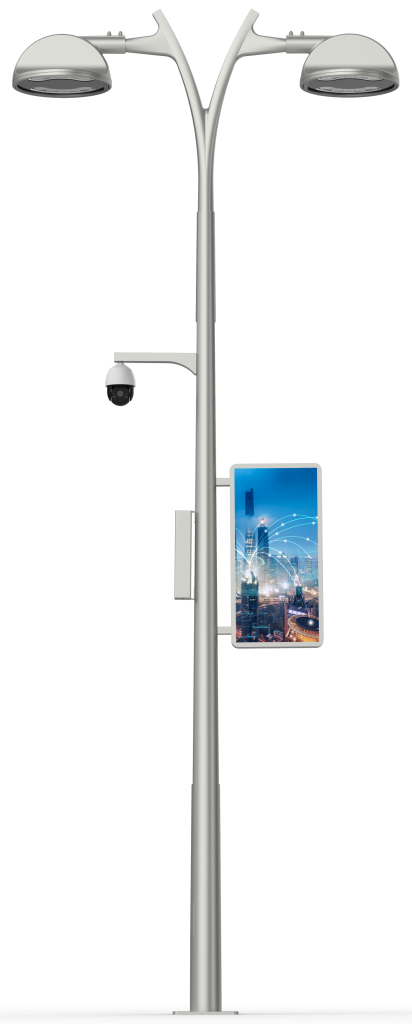

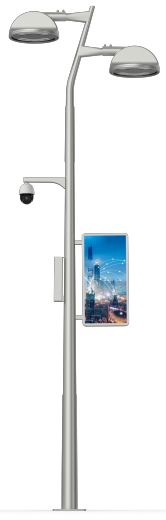

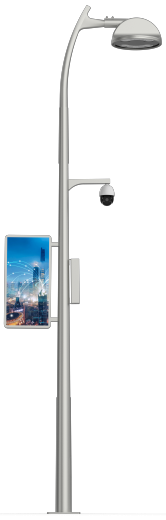

| A Variety Of Rod Combinations | |||||
| Pole.3605 | Pole.3606 | Pole.3401 | Pole.3621 | Pole.3622 | Pole.3623 |
 |  |  |  |  |  |
| Material : Aluminum alloy | Material : Aluminum alloy | Material : Q235 | Material : Aluminum alloy | Material : Aluminum alloy | Material : Aluminum alloy |
| Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 2.5 | Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 3 |
| Height(m) : 4/5/6 | Height(m) : 4/5/6 | Height(m) : 4/5/6 | Height(m) : 4/5/6 | Height(m) : 4/5/6 | Height(m) : 4/5/6 |
| Top size(mm) : Φ70 | Top size(mm) : Φ70 | Top size(mm) : Φ89 | Top size(mm) : Φ60 | Top size(mm) : Φ60 | Top size(mm) : Φ60 |
| Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ140 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 |
| Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 300*300 | Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 240*240 |
