Short Description:
T.613 is a linear tunnel lighting LED fixture with an even light-emitting surface and a low-glare optical design, providing excellent lighting effects. Mainly used in urban tunnels, corridors, underground parking lots, and large indoor shopping centers.
Tags：corridor, passage, Tunnel, Tunnel light,
Product Detail

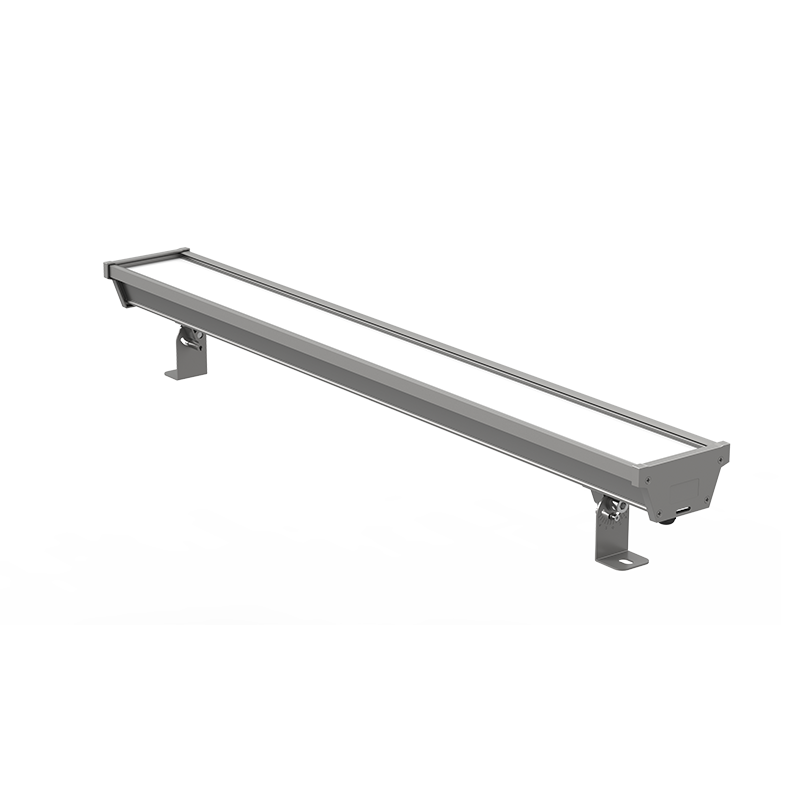

This product features a long strip continuous installation design, creating a seamless, comfortable, brighter, and flicker-free visual effect.
The closed lamp body structure eliminates the need for glue; the structural sealing method achieves an IP66 waterproof and dustproof effect.

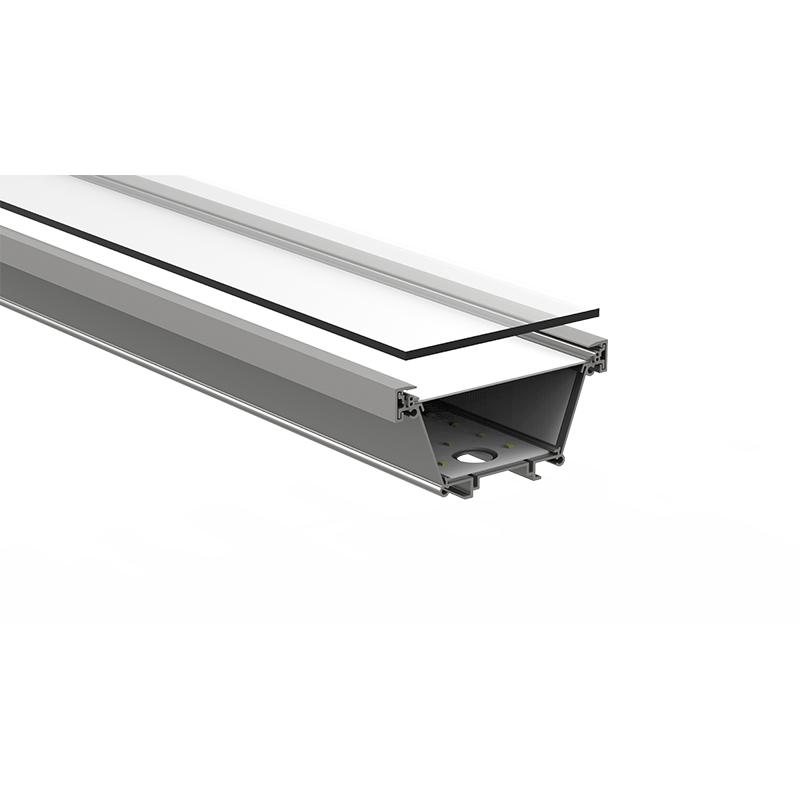

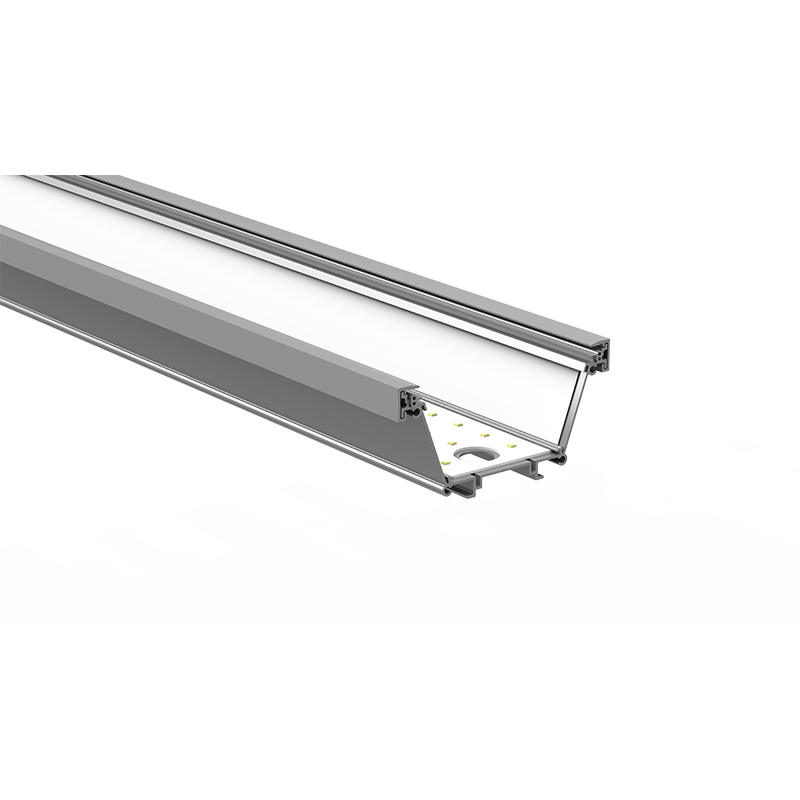

Tempered glass light-emitting surface, internally equipped with anti-glare optical panels, ensuring that the entire light-emitting surface is uniform and soft.

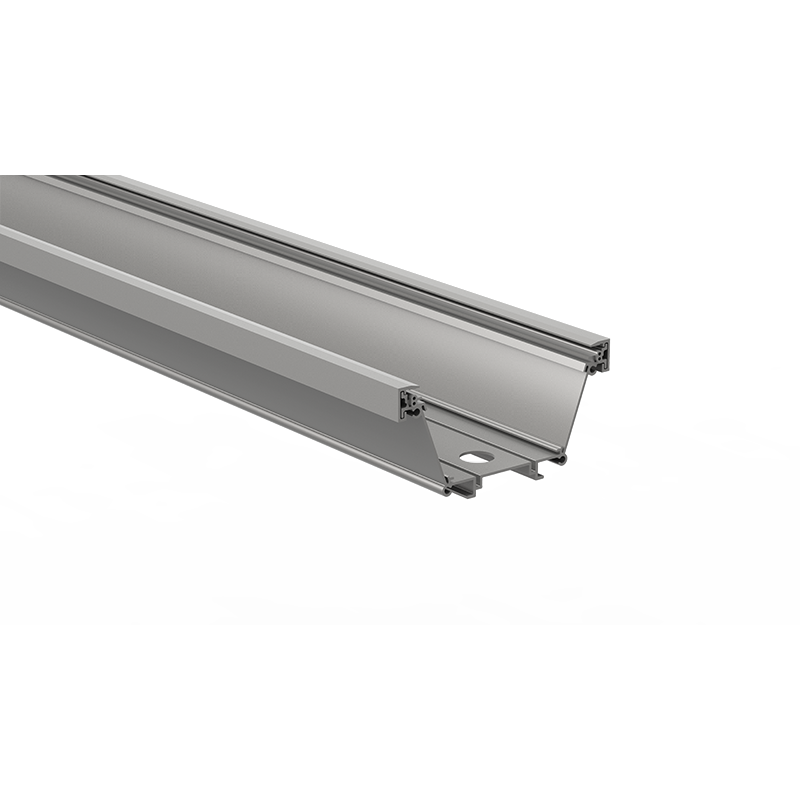

The lamp body is made of high-strength aluminum alloy profile structure, providing expandable space for the production of lamp body lengths. We offer standard lengths of 0.5 meters and 1 meter, and can also provide different lengths according to customer needs, such as lamp body lengths from 1 foot to 6 feet.
Constant brightness and dimmable options such as 0~10V, DALI power supply are available for adjusting and controlling the lighting.
Parameter table
| T.613 | ||

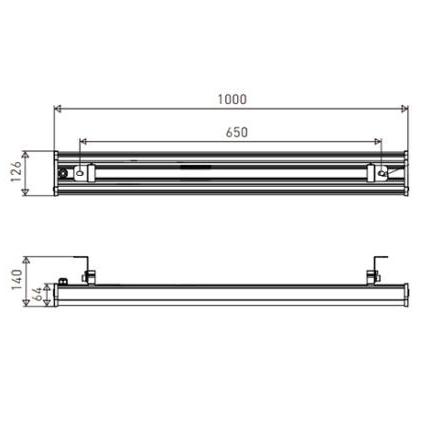

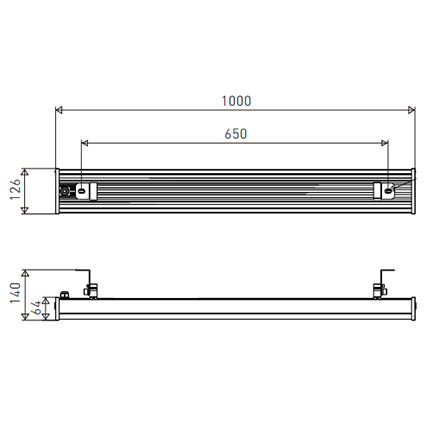

 | Size | L1000*W126*H140mm |
| Power | 20~120W | |
| Efficiency | 100lm/w~135lm/w | |
| Weight | 3.1~3.5KG | |

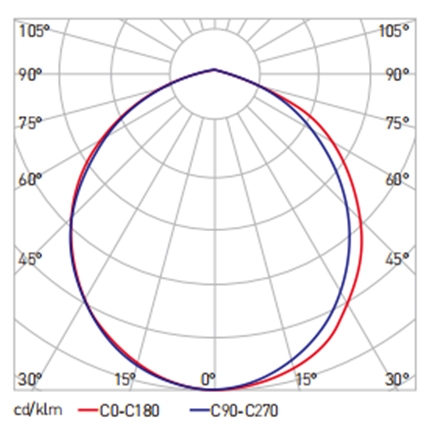

| Optics | 110° | |
| T.614 | ||
 | Size | L1000*W126*H140mm |
| Power | 150~240W | |
| Efficiency | 100lm/w~135lm/w | |
| Weight | 4.4KG | |
| Optics | 110° | |
| Attributes | Description |
| Rated power | 176~265Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK07 |
| IP | IP66 |
| safety class | Class I |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 3000K/4000K/5000K |

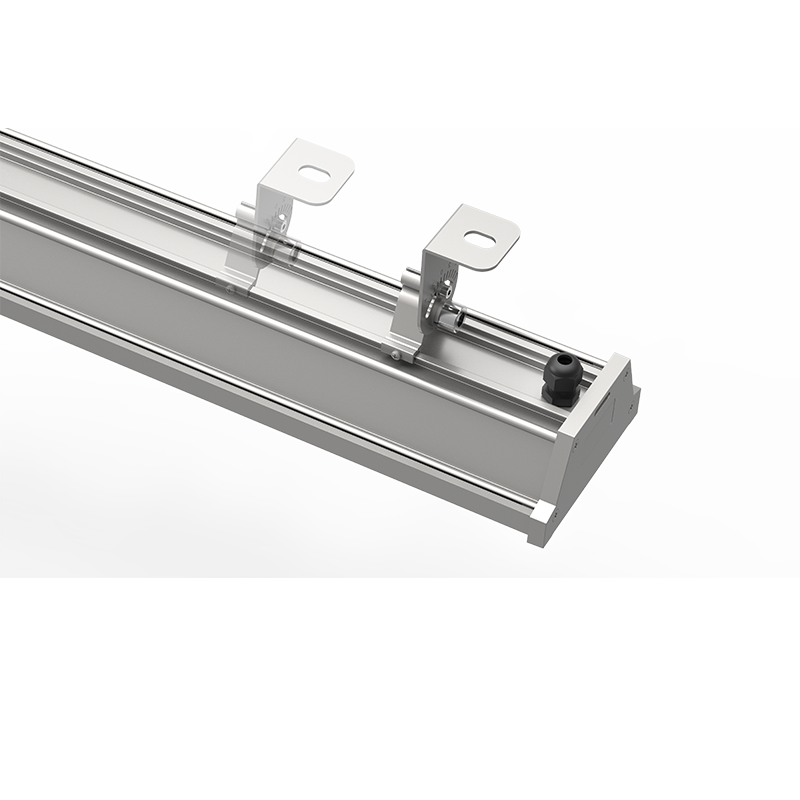

| Components Choosable | · Control power supply for dimming with 0~10V control or reverse control of 10~0V · Positioning slot mounting parts |
