Short Description:

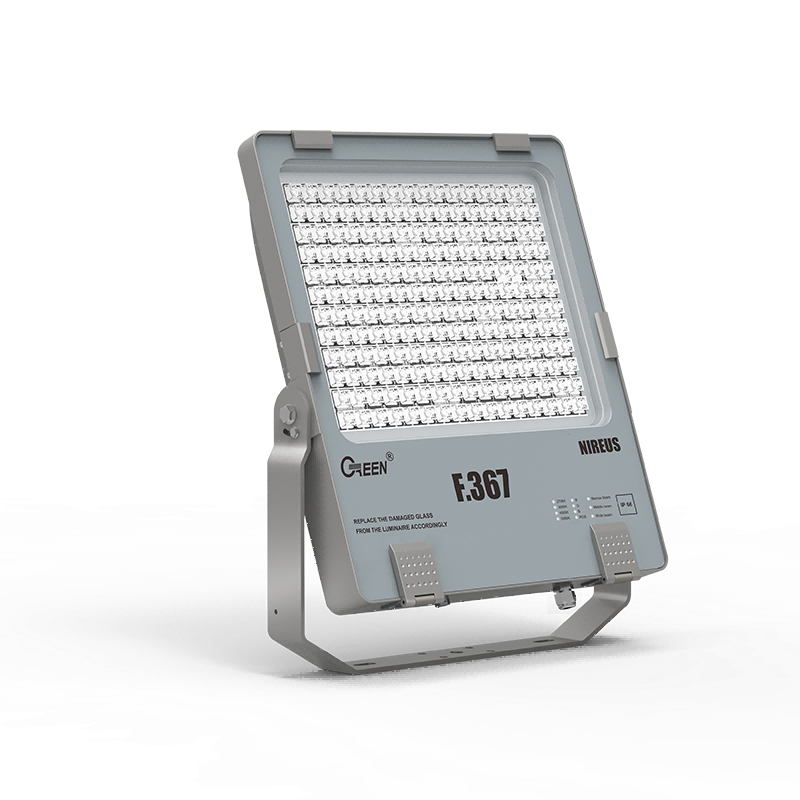

The F.367A LED floodlight is a professional-grade fixture specifically designed for outdoor high-intensity lighting, combining high efficiency, long lifespan, and excellent protective performance. With innovative structural design and high-quality material craftsmanship, it easily meets the demands of various complex outdoor environments, satisfying the high standards of industrial, commercial, and public space lighting needs. It is widely used in high pole lighting, parking lot lighting, industrial areas, factory lighting, construction site lighting, and billboard lighting. In addition, it is also suitable for places that require high brightness and wide-area lighting, such as urban squares, airport terminals, ports, and various sports fields.
Tags：dock, flood, floodlight, sports venues, square,
Product Detail

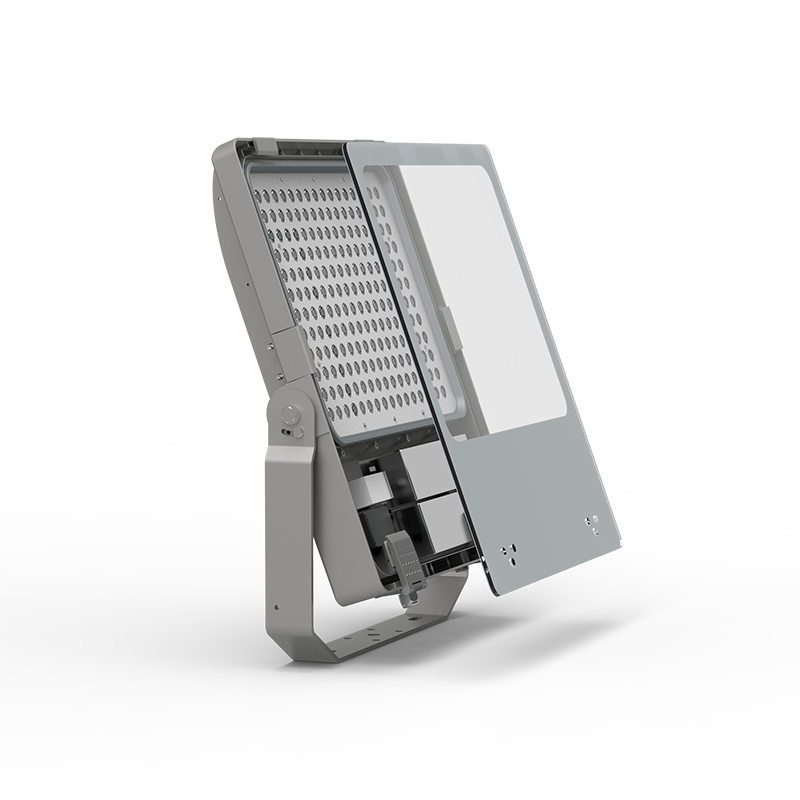

Fully die-cast integrated structure, sturdy and durable
Using high-strength die-cast aluminum integrated molding technology, with excellent sealing performance, effectively protecting internal optical and electronic components, extending the lifespan of the lighting fixture.
Glue-free IP66 protection design, completely eliminating water ingress and dust accumulation issues, suitable for harsh weather conditions such as heavy rain and sandstorms.
Efficient Heat Dissipation and Corrosion Resistance

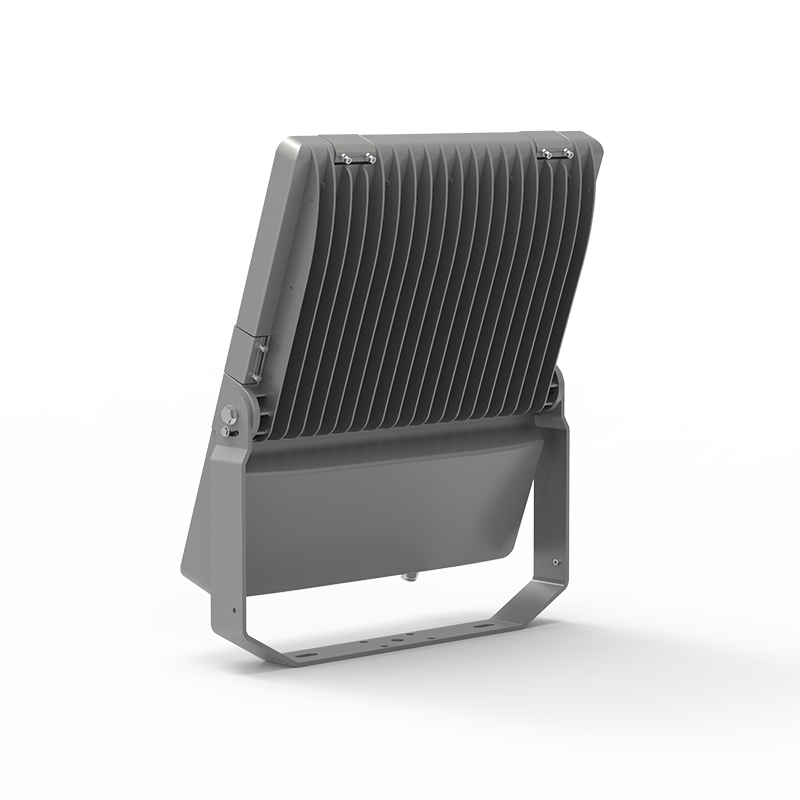

Streamlined rear heat dissipation structure: Accelerates air convection through aerodynamic design, reduces wind resistance, significantly enhances heat dissipation efficiency, and ensures long-term stable operation of the chip.
500 hours of salt spray corrosion resistance coating: The surface is treated with a special process, resistant to UV aging and salt spray corrosion, suitable for high-corrosion environments such as coastal areas and chemical zones.
Professional-grade Lighting Performance
Brand LED chips: Equipped with high-efficiency LED light sources, with a maximum power of up to 420W, high luminous efficacy, and good color rendering, meeting the demand for high brightness over a large area.
Flexible lighting solutions: Offers a variety of beam angle options (such as narrow, medium, and wide beams), precise light control to reduce glare and light pollution, suitable for different lighting needs in various scenarios.
Convenient Installation

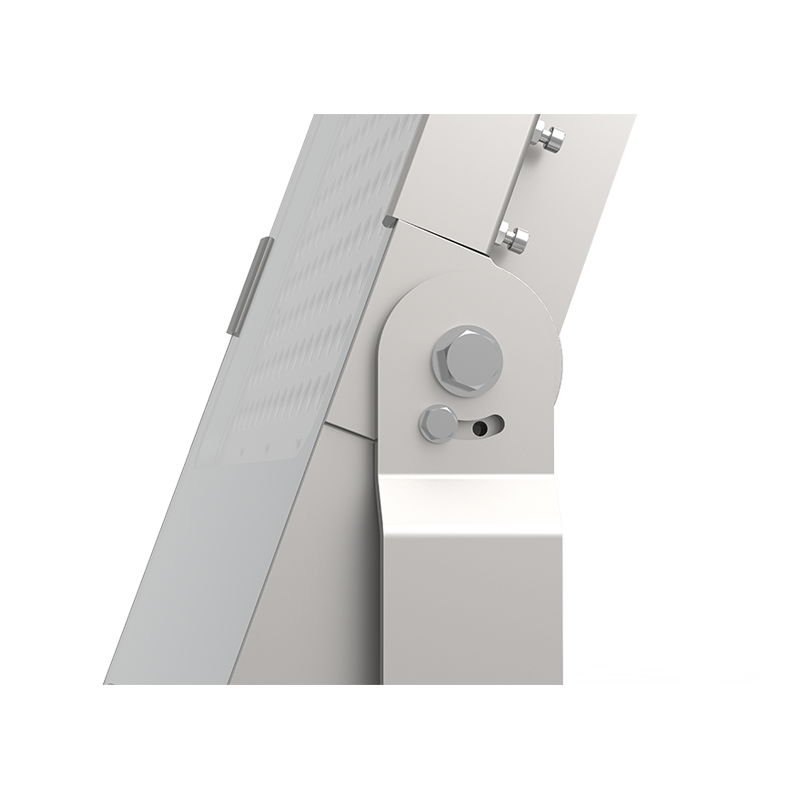

Multi-angle Adjustable Bracket: Equipped with a scale design, supports 0~±90° free rotation, allowing precise adjustment of the illumination direction.
Excellent Waterproof and Dustproof Performance:
The entire lamp adopts an IP66 waterproof and dustproof design (without glue), ensuring stable operation in harsh environments such as humidity and dust.
Good impact resistance:
The IK08 protection design gives the lamp a strong impact resistance, effectively resisting high-intensity mechanical impacts and preventing damage to the lamp caused by external collisions.
Parameter table
| F.367 | ||

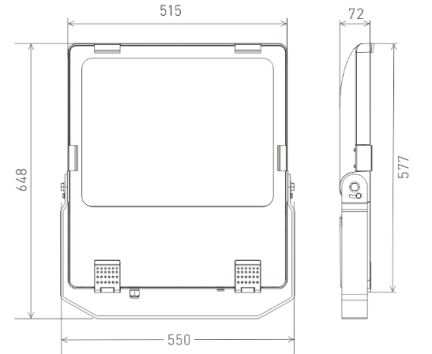

 | Size | L648* W515* H72mm |
| Power | 220~420W | |
| Efficiency | 90lm/w~120lm/w | |
| Weight | 18.5KG | |

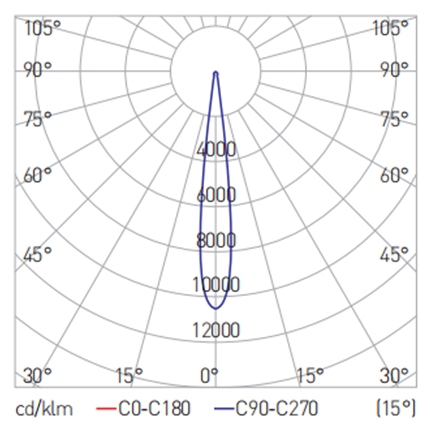

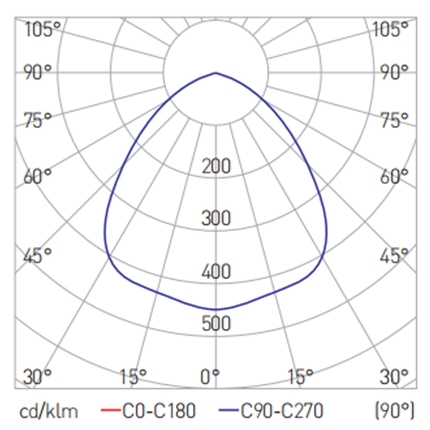

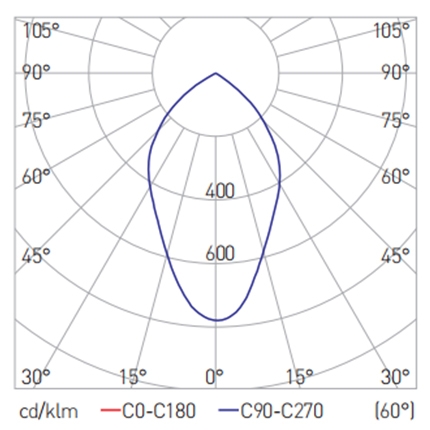

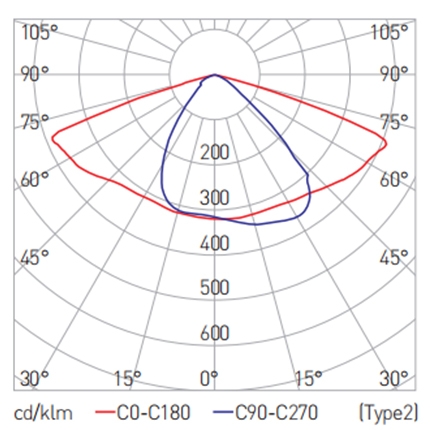

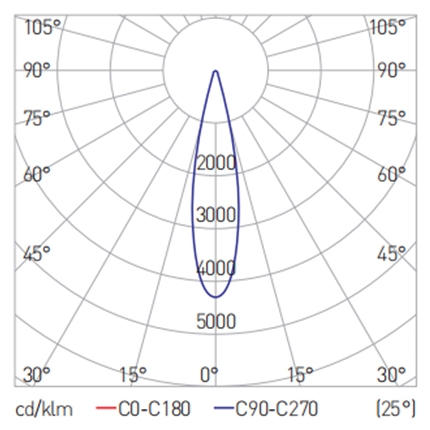

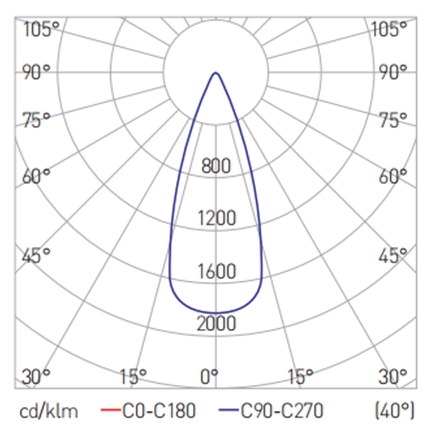

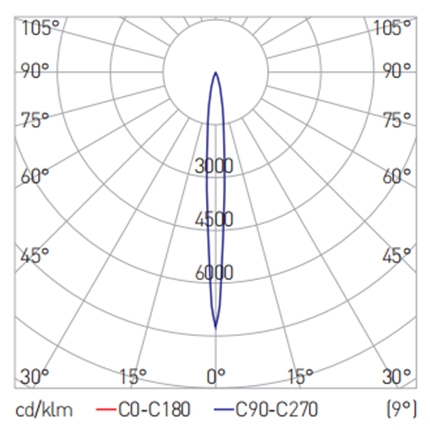

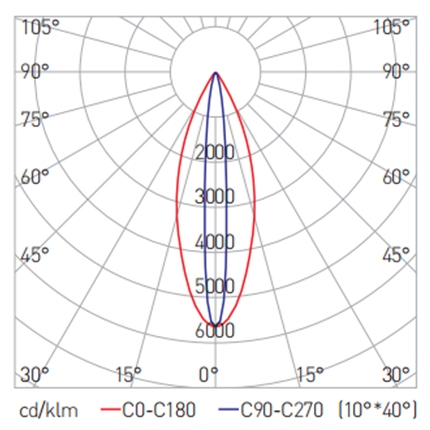

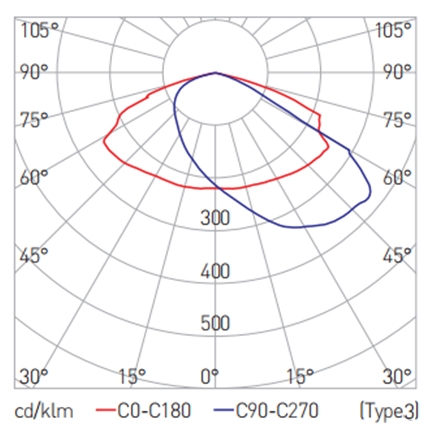

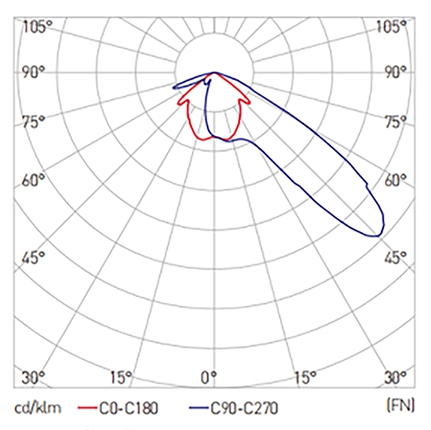

| Optics | 9°、15°、25°、40°、60°、10°*40°、T2、T3、FN | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or DMX512 dimming |
| Anti-collision level | IK08 |
| IP | IP66 |
| safety class | Class I |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2200K/2700K/3000K/4000K/5000K/6500K/RGB/RGBW |
| Vibration level | 3G |
| Product lifespan | 50,000 hours (L70@40℃ Ta) |
