Short Description:

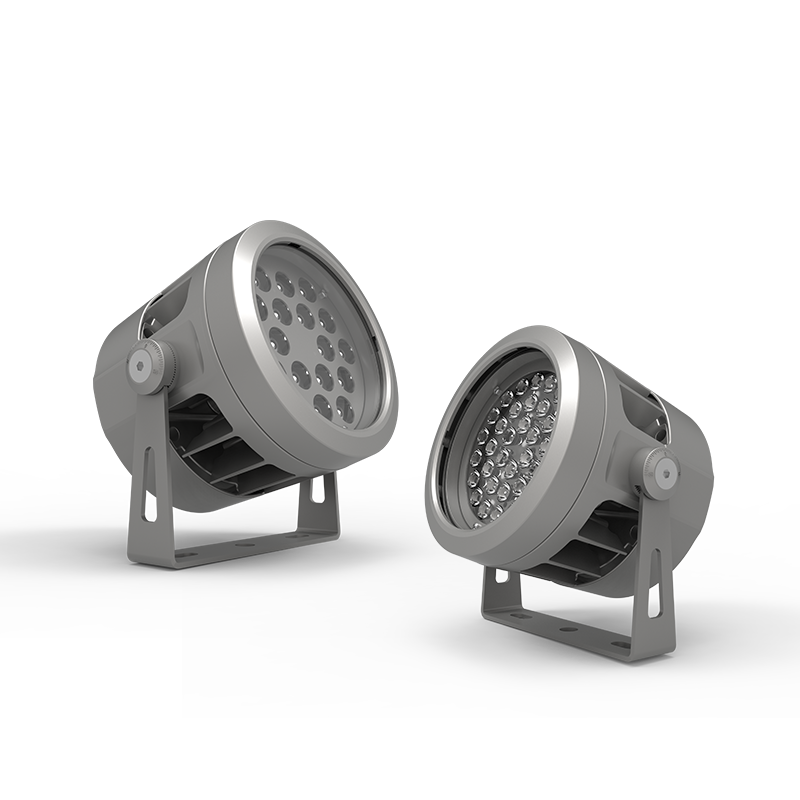

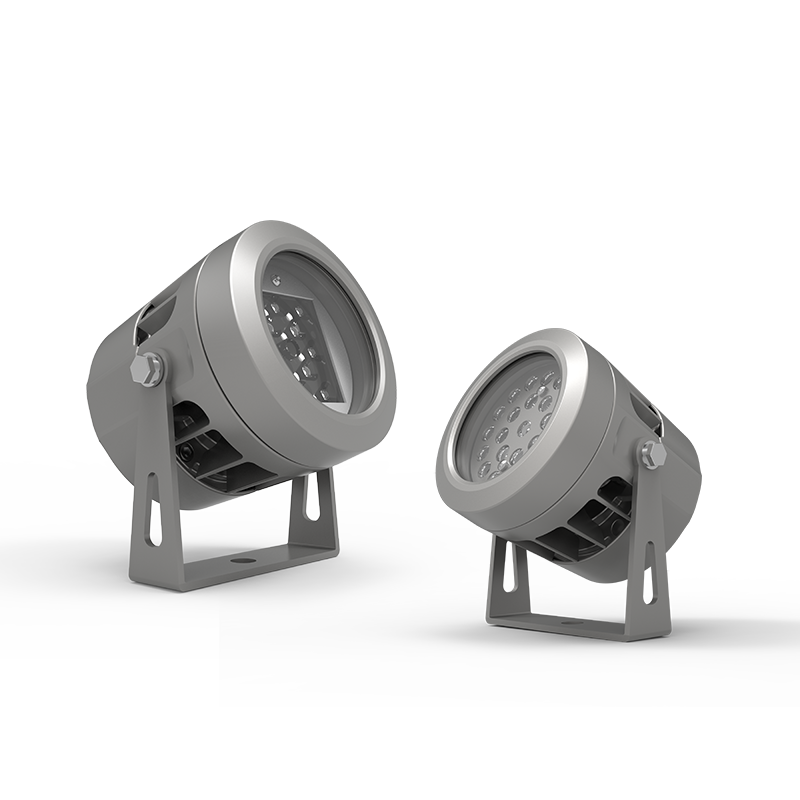

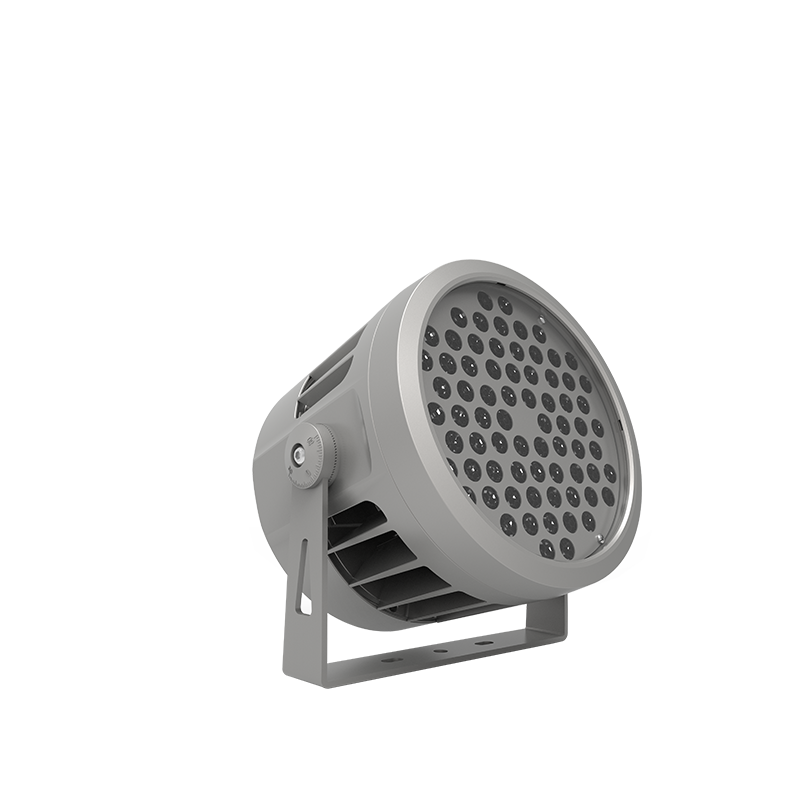

We are honored to introduce our meticulously designed F.39X series LED floodlights. This series has become a top - notch product in the market due to its excellent performance, exquisite design, and wide range of applications. It is mainly applied to places such as building facades, squares, stages, parks, and residential communities.
Tags:Architecture, Building Facade, Floodlighting, landscape lighting, outdoor, Spotlighting,
Lamp body material: Full die-cast aluminum alloy lamp body, both durable, heat dissipation performance and very excellent, can ensure long-term stable operation of lamps.
Lamp body size: To meet the lighting needs of different places, we provide 4 different sizes of lamp body for you to choose, to ensure that you can find the most suitable for the application scenario.
Power range: This LED floodlight has power between 12W and 180W, whether you need soft ambient lighting or high intensity functional lighting, we can meet your needs.
Surface material: High quality tempered glass is used as the surface, good light transmission, strong impact resistance, to ensure that the light is evenly and gently irradiated to the target area.
Waterproof and dustproof design: The whole lamp reaches IP66 waterproof and dustproof grade (no glue design), to ensure that the lighting effect can be maintained in a variety of harsh environments.
Protection design: IK08 protection grade, effectively resist external impact and damage, extend the service life of lamps.
Hidden screw design: The whole lamp surface is simple and clean, no complicated feeling, hidden screw design is not only beautiful and generous, but also reduces the accumulation of dust and dirt.
Multiple light angles: You can choose from a variety of light angles to ensure that you can adjust the light direction and coverage as needed.
The light color choices: 2200 k / 2700 k / 3000 k / 4000 k / 5000 k/RGB/RGBW
Double cavity structure design: The power supply component and light source component are designed with double cavity structure, easy to replace, and the heat of the power supply and light source do not interfere with each other. At the same time, this design does not affect the sealing performance, effectively extend the life of the whole lamp.

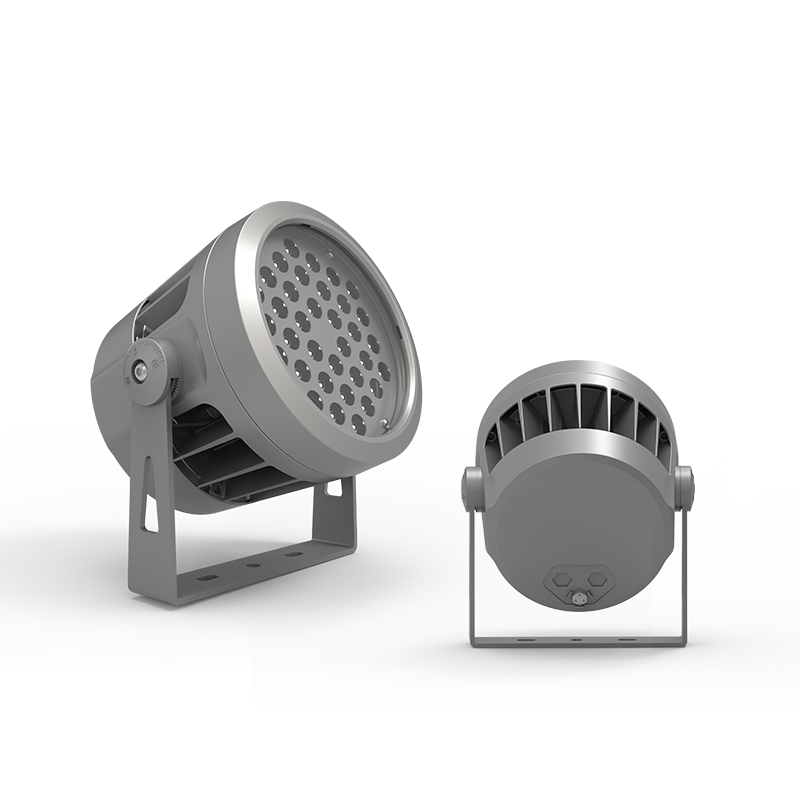

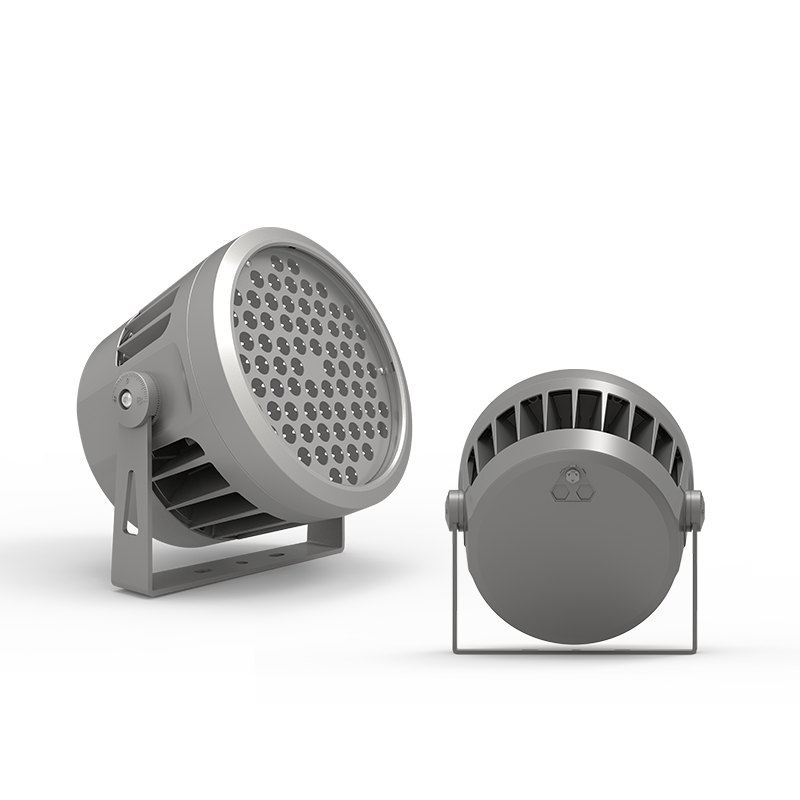

Open heat dissipation structure: Unique open heat dissipation structure, heat dissipation effect is remarkable. The fish-fin design skeleton not only enhances the heat dissipation effect, but also avoids the accumulation of dust, fallen leaves and rain, ensuring that rain can be smoothly discharged from any direction.
Gear type bite design: The bracket adopts gear type bite design, Angle adjustment is accurate, convenient for you to adjust the irradiation Angle of the lamp according to actual needs.
The lamp body can be rotated: the lamp body can be rotated ±90° to fit the lighting needs of different places and achieve a more flexible lighting layout.
Anti-glare design: equipped with anti-glare cover and anti-glare honeycomb to choose from, effectively reduce glare phenomenon, improve lighting comfort.

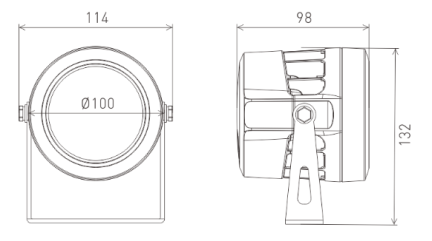

| F.391 | ||
![]() | Size | φ100* H98mm |
| Power | 12~24W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 0.8KG | |

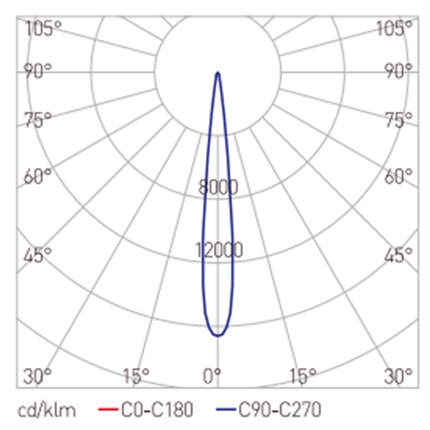

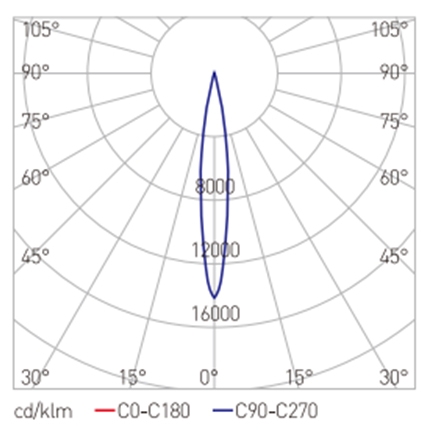

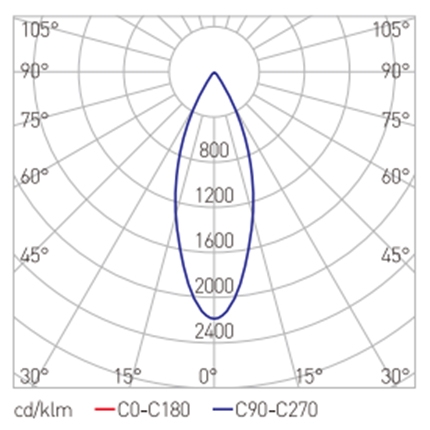

| Optics | 15°、24°、36° | |
| F.392 | ||

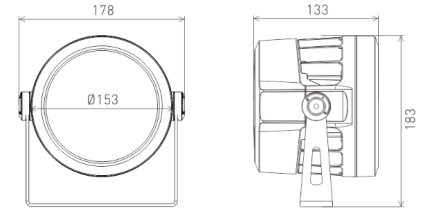

![]() | Size | φ153* H133mm |
| Power | 15~54W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 2.0KG | |

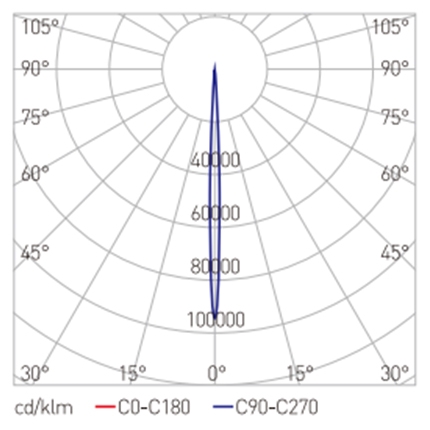

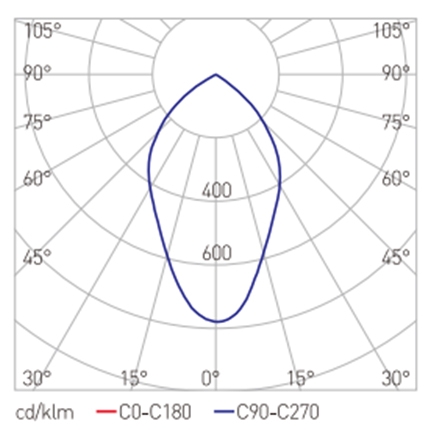

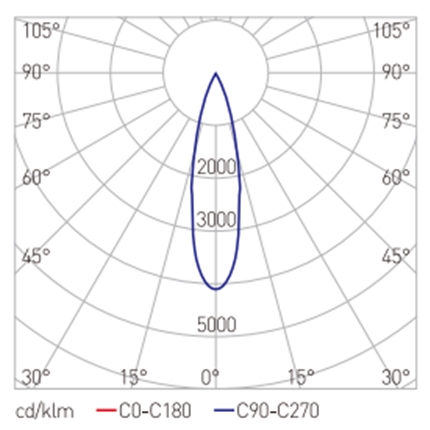

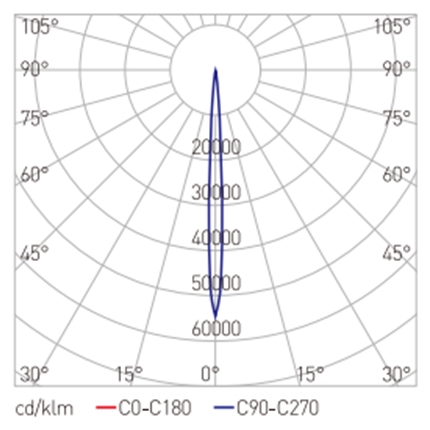

| Optics | 3.5°、6.5°、10°、15°、25°、40°、60° | |

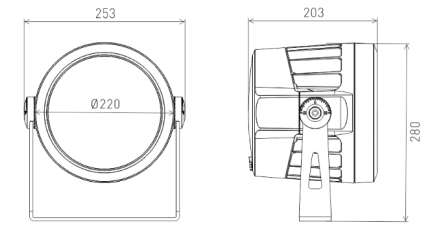

| F.393 | ||
![]() | Size | φ220* H203mm |
| Power | 40~80W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 6.0KG | |
| Optics | 3.5°、6.5°、10°、15°、25°、40°、60° | |

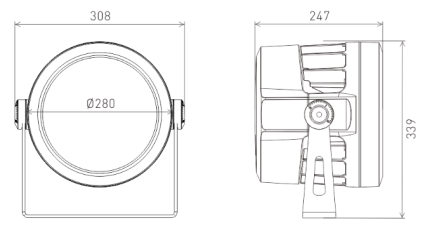

| F.394 | ||
![]() | Size | φ280* H247mm |
| Power | 68~180W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 10.2KG | |
| Optics | 3.5°、6.5°、10°、15°、25°、40°、60° | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK08 |
| IP | IP66 |
| safety class | Class I |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2200K/2700K/3000K/4000K/5000K/6500K |
| Vibration level | 3G |
| Product lifespan | 50,000 hours (L70@40℃ Ta) |
