Short Description:

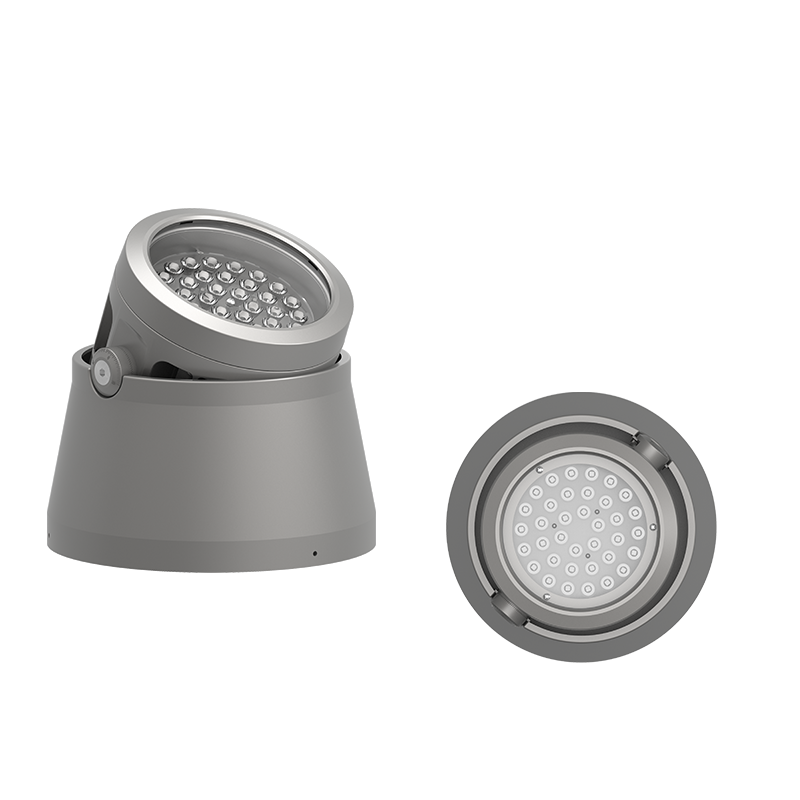

The I.89X series underground light is an innovatively designed semi-buried landscape lighting fixture that combines minimalist aesthetics with high-performance outdoor protection technology, specifically created for modern landscape illumination. Its concealed structure and open heat dissipation design meet the aesthetic requirements of environmental integration while ensuring efficient lighting and long-lasting durability, making it an ideal lighting solution for urban green belts, landscape lighting, parks, flower beds, tree pits, and other locations.
Tags:flower bed, green lighting, landscape lighting, tree pit, underground light,
Minimalist and Stylish Appearance: Adopts a hidden screw design, ensuring a smooth surface without redundancy, showcasing a minimalist yet stylish aesthetic that provides users with a fresh visual experience.
Light Source: Uses well-known brand LED chips, with a power range covering 18W to 120W, ensuring high efficiency, energy-saving, and stable illumination of the fixture.
Dual Chamber Structure Design: The power component and light source component are designed with independent chambers, making maintenance and replacement easier, while effectively isolating heat between the power and light sources to avoid mutual interference, and maintaining sealing performance to extend the lifespan of the fixture.

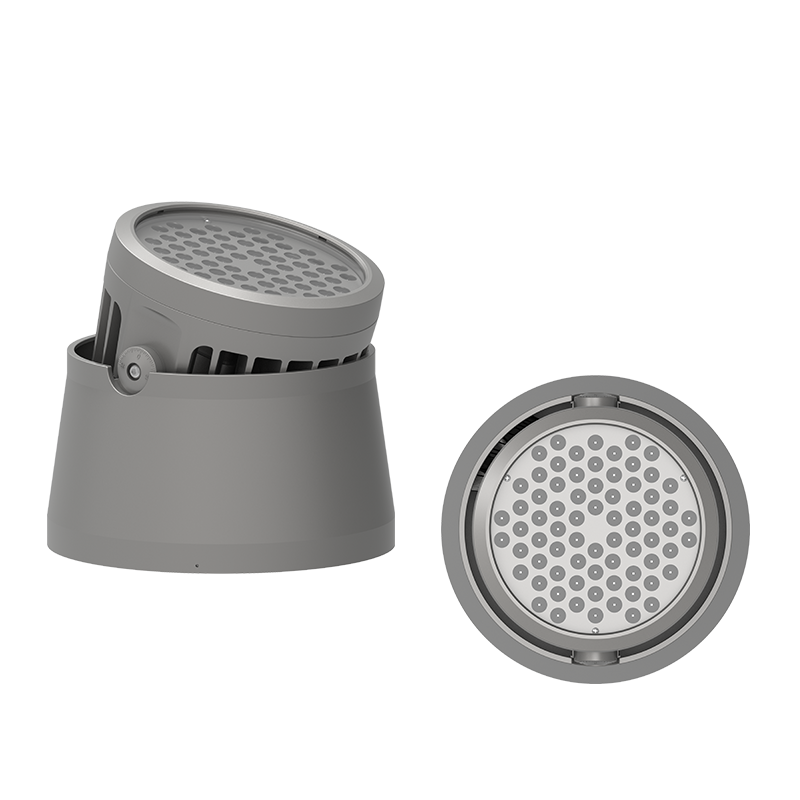

Open cooling structure: Adopts advanced open cooling design, significantly enhancing heat dissipation, ensuring that the fixture maintains stable performance even after prolonged operation.
High light transmittance materials: The light-emitting surface uses high-transmittance ultra-white tempered glass and optical-grade PC lenses, offering excellent light transmission performance, with uniform and soft illumination, enhancing lighting effects.
Corrosion-resistant treatment: The surface of the lamp body is treated with electrostatic spraying, effectively resisting UV rays and the erosion of harsh environments, making it suitable for various outdoor settings.
High standard protection level: The entire lamp achieves an IP67 waterproof and dustproof rating (without glue), as well as an IK08 protection level, ensuring normal operation under various harsh weather conditions and accidental impacts.

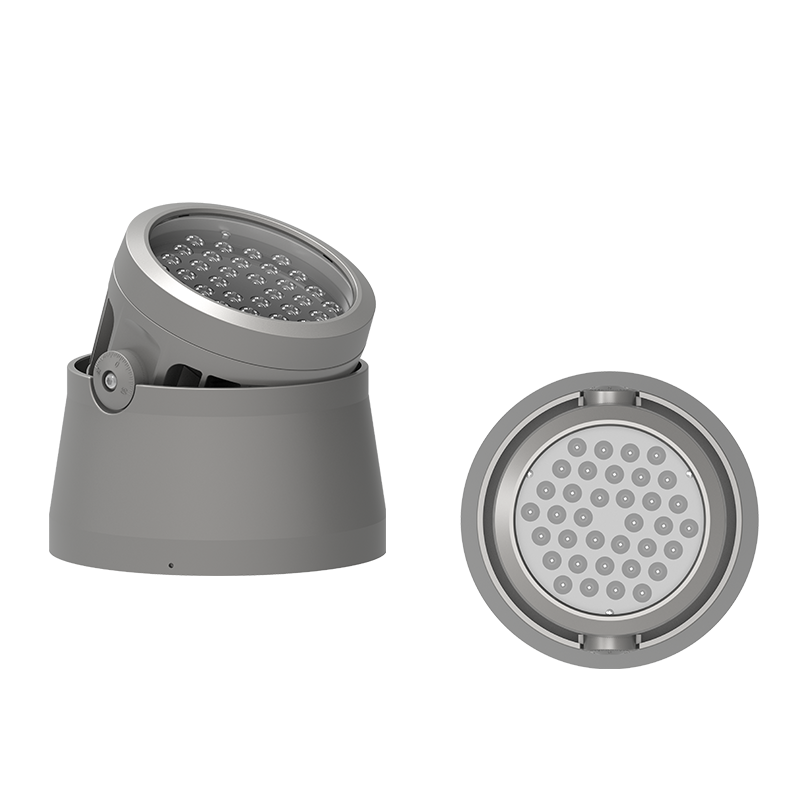

Flexible angle adjustment: The fixture supports horizontal rotation of 360° and vertical rotation of ±15°, allowing for flexible adjustment of the lighting direction based on actual lighting needs.
| I.892 | ||

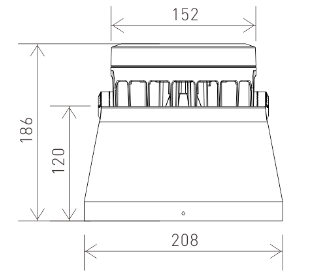

![]() | Size | φ208* H186mm |
| Power | 12~36W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 2.0KG | |

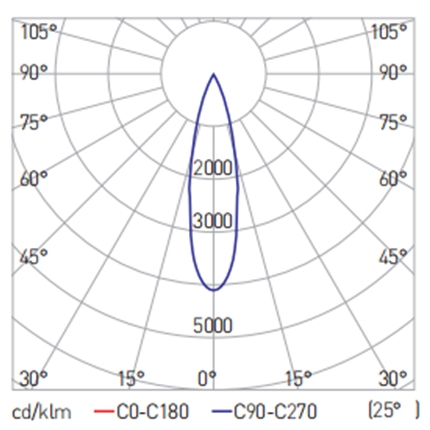

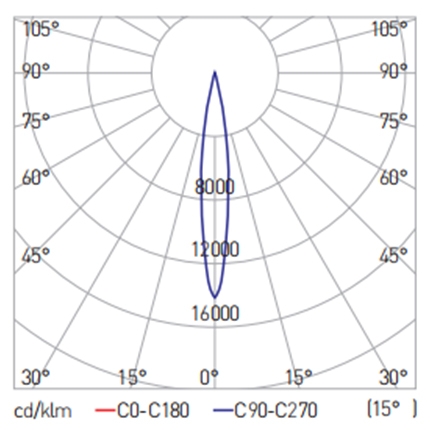

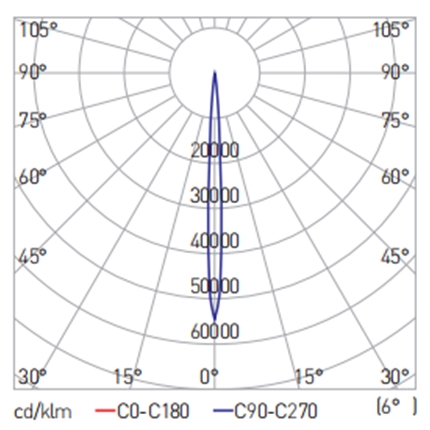

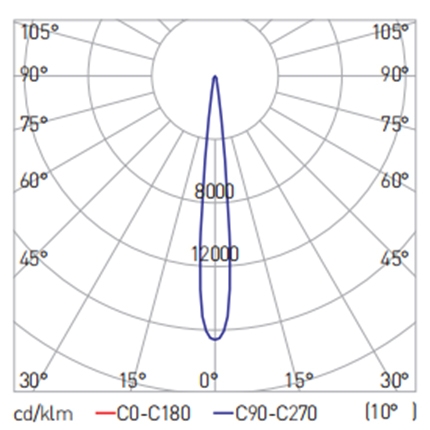

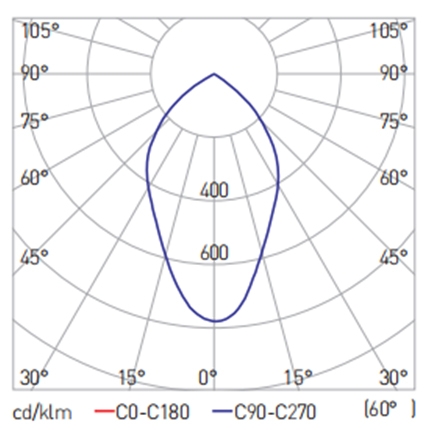

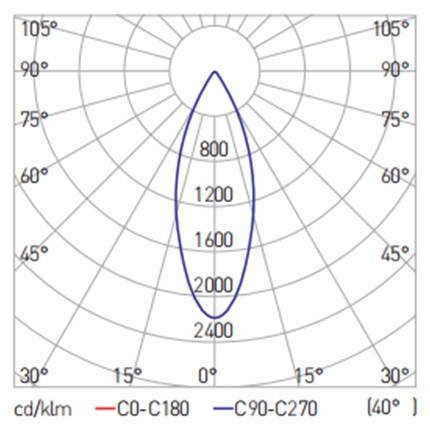

| Optics | 6.5°、10°、15°、25°、40°、60° | |
| I.893 | ||
![]() | Size | φ280* H251mm |
| Power | 45~68W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 6.0KG | |
| Optics | 6.5°、10°、15°、25°、40°、60° | |
| I.893 | ||
![]() | Size | φ280* H251mm |
| Power | 45~68W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 6.0KG | |
| Optics | 6.5°、10°、15°、25°、40°、60° | |
| I.894 | ||
![]() | Size | φ350* H318mm |
| Power | 68~120W | |
| Efficiency | 75lm/w~100lm/w | |
| Weight | 10.2KG | |

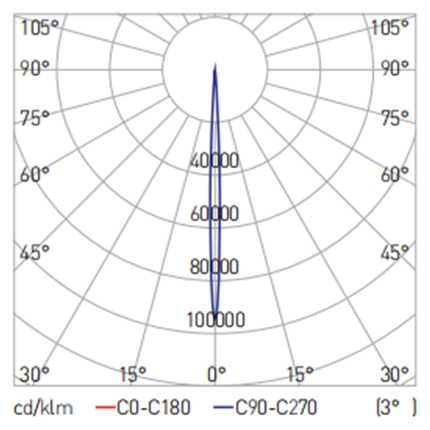

| Optics | 3.5°、6.5°、10°、15°、25°、40°、60° | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or MDX512 dimming |
| Anti-collision level | IK10 |
| IP | IP67 |
| safety class | Class I or Class III |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2200K/2700K/3000K/4000K/5000K/6500K/RGB/RGBW |
| Vibration level | 3G |
| Product lifespan | 50,000 hours (L70@40℃ Ta) |
